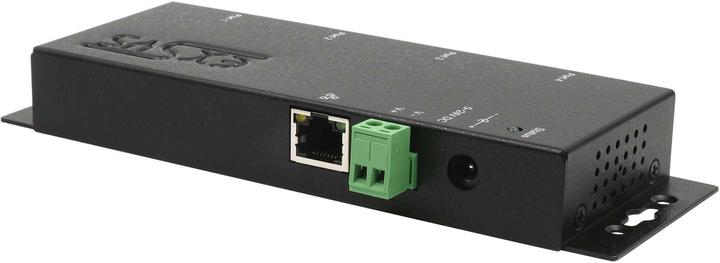

Exsys Serial Device Server 4x RS232

The EX-6114-2 is a serial multiprotocol RS-232 device server designed for connecting serial RS-232 devices, including point-of-sale systems, barcode scanners, sensors, measuring instruments, weighing systems, CNC controls, and PLCs, to an IP-based Ethernet network. The serial devices are connected via Ethernet and are available for sharing within the subnet and the internet. Remote configuration is facilitated through extensive network protocols such as TCP server, TCP client, UDP, VCOM, serial Telnet, RFC2217, Remote-Pair-Master-Slave, or Modbus RTU. To ensure backward compatibility with serial legacy devices running existing COM port application software, the EX-6114-2 provides a virtual COM port (VCOM) that perfectly migrates your serial application without modifying the software. Additionally, serial devices can communicate with each other in peer-to-peer mode without the need for a PC or conversion software.

Interface RS-232 V.24
15 kV ESD surge protection for all serial signals
Data Bits: 5, 6, 7, 8 / Parity: None, Even, Odd, Mark, Space

RS-232 Signals: TXD, RXD, RTS, CTS, DTR, DSR, DCD, and GND

Ethernet Protocols:
TCP Server, TCP Client, UDP, VCOM, Serial Telnet/RFC2217

Direct access via socket port
Point-to-point connection, no software required
Virtual-COM software available for download
Robust metal housing
For desktop or wall mounting, DIN-rail kit available as an option

Package includes:
EX-6114-2, power supply 12V/3A, manual.
