Exsys GmbH Managed 4-Port USB 3.2 Gen 1 Metal HUB with 15KV ESD Surge Protection, A-Sockets, Supported

USB-B, 4 ports
was CHF141.–
Ratings
BrandMore from Exsys
Delivered between Wed, 22.4. and Fri, 24.4.
2 items ordered
free shipping

Product details

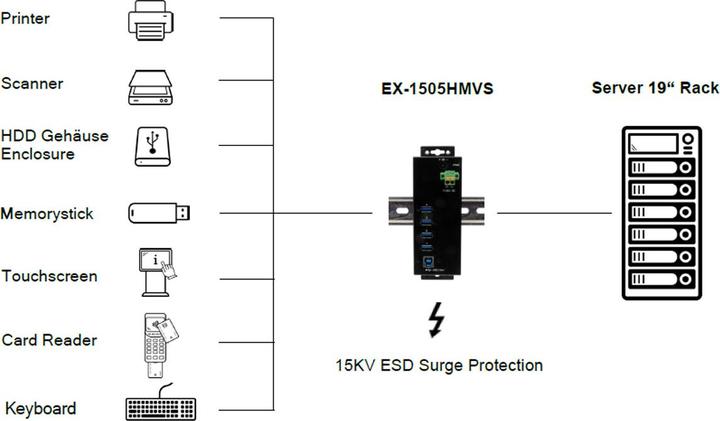

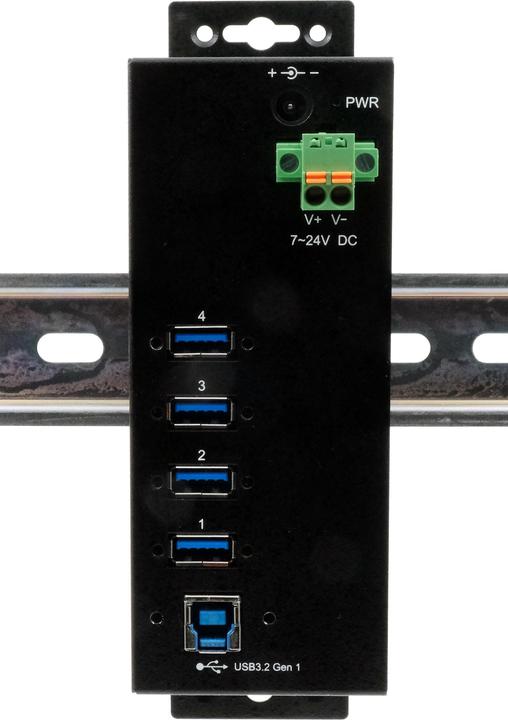

The EX-1505HMVS Managed Metal Hub from Exsys is a robust and industrial-grade solution that offers four screwable USB 3.2 Gen 1 downstream ports. With an impressive ESD overvoltage protection of 15 kV, this hub ensures reliable data transmission and protects connected devices from electrical disturbances. It supports data transfer rates of up to 5 Gbit/s and is backward compatible with older USB versions. The hub is designed for self-powered mode and requires an external power supply via the DC jack or the two-wire terminal block connection. The user-friendly management software allows for individual control of the USB bus voltage at each port and enables resetting the hub to factory settings. With a maximum power output of 60 watts and support for various charging modes, the EX-1505HMVS is ideal for industrial applications that demand high performance and reliability.

  • Robust metal hub for industrial applications
  • Supports up to 3 A current per output
  • Management software for controlling USB bus voltage
  • Backward compatible down to USB 1.1
  • Includes DIN rail kit for easy mounting.

Key specifications

Type
USB hub
Main connection
USB-B
Exact USB ports
USB-A 3.0 (4x), USB-A 3.2 Gen 1 (4x)
Documents
Technical data sheet.pdf, Manual.pdf

General information

Item number
23214800
Manufacturer
Exsys
Category
Docking stations + USB hubs
Manufacturer no.
EX-1505HMVS
Release date
1.11.2021

Colour

Colour
Black

Docking Station + USB Hub Features

Type
USB hub
Number of ports
4 ports
Equipment + functions
Mounting option

Connection to main device

Main connection
USB-B

Connection to external devices

USB ports
USB-A
Exact USB ports
USB-A 3.0 (4x), USB-A 3.2 Gen 1 (4x)

Network

Max. port speed
5000 Mbit/s

Power supply

Charging power
60 W

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
64.45 kg
Climate contribution
CHF 1.54

Scope of delivery

Scope of delivery
Din-rail kit, Driver C..., EX-1505HMVS, USB 3.2 Gen 1 cable

Product dimensions

Length
24.50 cm
Width
5.48 cm
Height
16.32 cm
Weight
588 g

Package dimensions

Length
25.30 cm
Width
17.50 cm
Height
6 cm
Weight
599 g
