Product details

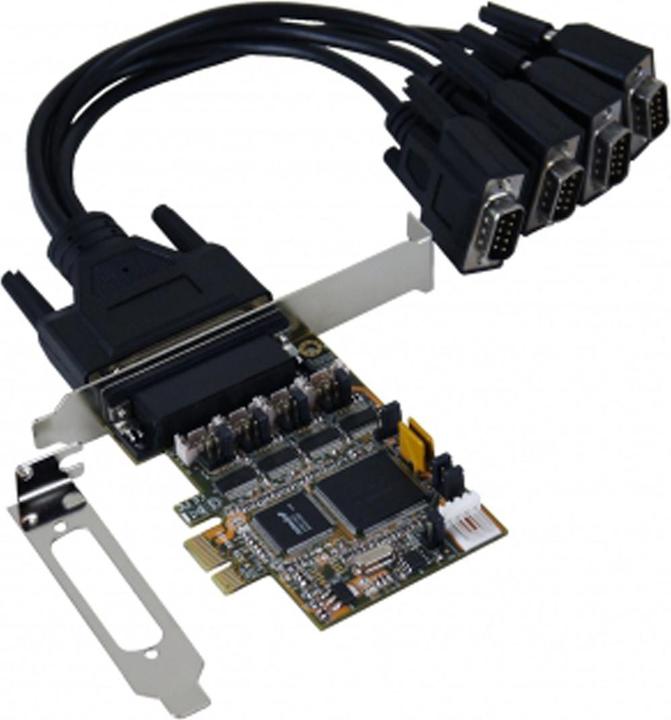

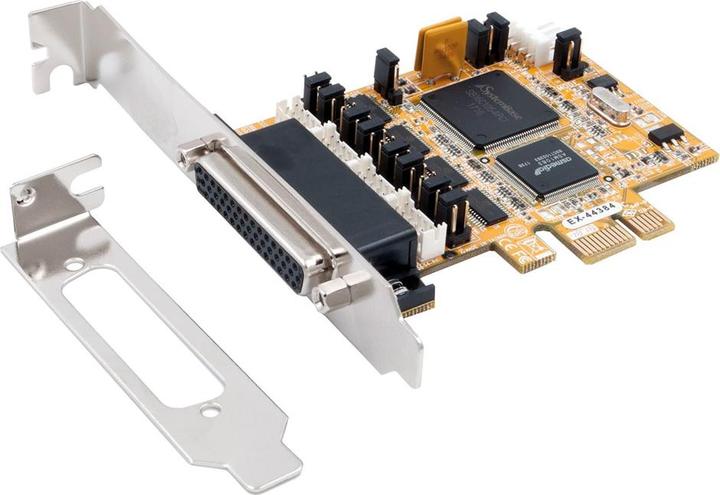

The EX-44384 PCI-Express I/O card provides four serial RS-232 High Performance UART 16C1050 outputs. It is designed to expand a PC, workstation, or server with four additional serial ports via the PCI Express bus. The card is fully PCI-Express Plug-and-Play compatible and does not conflict with IRQ and I/O addresses. Additionally, +5V or +12V can be configured on pin 9 of the serial connector for a POS system (Power over System). The EX-44384 comes with a low-profile bracket, allowing the card to be installed in slim PC cases.

Interface: RS-232 V.24 / FIFO Buffer: 16C1050 with 256 bytes
±15kV IEC1000-4-2 ESD protection for RS232 I/Os
I/O addresses and interrupts are assigned by the operating system, IRQ sharing
PCIe interface compatible with specifications 1.0a to 3.0
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Supports hardware and software flow control
Supports +5V or +12V on pin 9 of the serial connectors
Chipset: SystemBase SB16C1054PCI

Package contents:

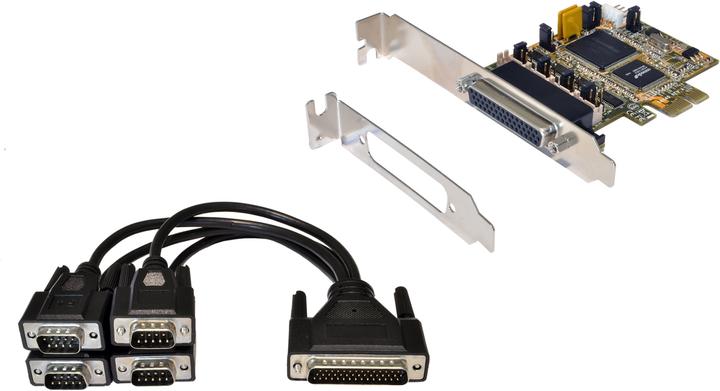

EX-44384, octopus cable, driver CD, low-profile bracket, manual.

Key specifications

Expansion card form factor
Full Profile, Low profile
Data ports
RS-232 (1x)
Internal connection options
PCI Express x1
Expansion slot
PCI Express x1 (1x)
Documents
Technical data sheet.pdf, Manual.pdf
Item number
5926729

General information

Manufacturer
Exsys
Category
Controller cards
Manufacturer no.
EX-44384
Release date
14.3.2016

Controller properties

Expansion card form factor
Full Profile, Low profile

Peripheral port

Peripheral connections
RS-232
Data ports
RS-232 (1x)

Internal interfaces

Internal connection options
PCI Express x1
Expansion slot
PCI Express x1 (1x)

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
479 g
Width
89 mm
Length
245 mm

Package dimensions

Length
27 cm
Width
17.30 cm
Height
6.30 cm
Weight
475 g
