Exsys EX-44072, Universal PCI-E to 2S RS-232 card, (Oxford)

3Ratings
BrandMore from Exsys
Currently out of stock
Free shipping starting at 50.–

Product details

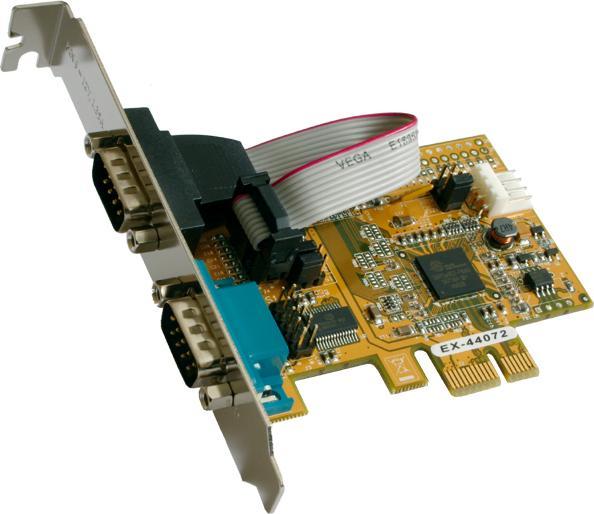

The EX-44072 PCI-Express I/O card provides two serial RS-232 High Performance UART 16C950 outputs. It is designed to expand two additional serial ports for PCs, small workstations, or servers via the PCI Express bus. The card is fully PCI-Express Plug-and-Play compatible and has no issues with IRQ and I/O address conflicts. Additionally, +5V or +12V can be configured on pin 9 of the serial connector for a POS system (Power over System). The EX-44072 comes with two low-profile brackets for narrow computer cases up to 8 cm in height.

Interface: RS-232 V.24
FIFO Buffer: 16C950 with 128 Bytes
±15 kV IEC1000-4-2 ESD protection for RS232 I/Os
I/O addresses and interrupts are assigned by the operating system, IRQ sharing
Data Bits: 5, 6, 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
PCI Express interface compatible with 1.0a specification
WHQL certified
Chipset: Oxford OXPCIe952.

Key specifications

Expansion card form factor
1 Slot
Expansion slot
PCI Express x1 (1x)
Documents
Brochure.pdf
Item number
223960

General information

Manufacturer
Exsys
Category
Controller cards
Manufacturer no.
EX-44072
Release date
23.6.2009

Controller properties

Expansion card form factor
1 Slot

Internal interfaces

Expansion slot
PCI Express x1 (1x)

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
200 g
Width
62 mm
Length
85 mm

Package dimensions

Length
22 cm
Width
3 cm
Height
15.10 cm
Weight
144 g
