Exsys EX-1332HMV, USB2.0 to 2xSerial RS232

Ratings
Delivered between Mon, 14.7. and Thu, 17.7.
More than 10 pieces in stock at third-party supplier
Supplied by
JACOB DE
free shipping

Product details

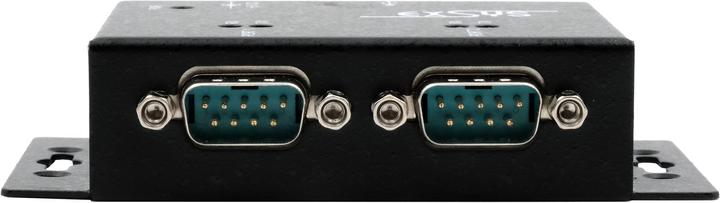

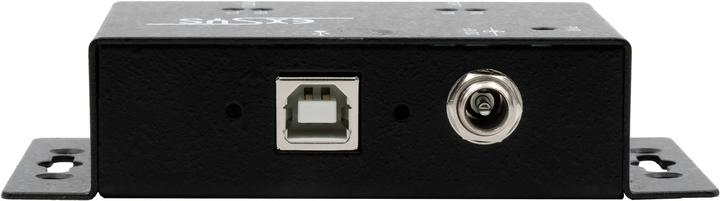

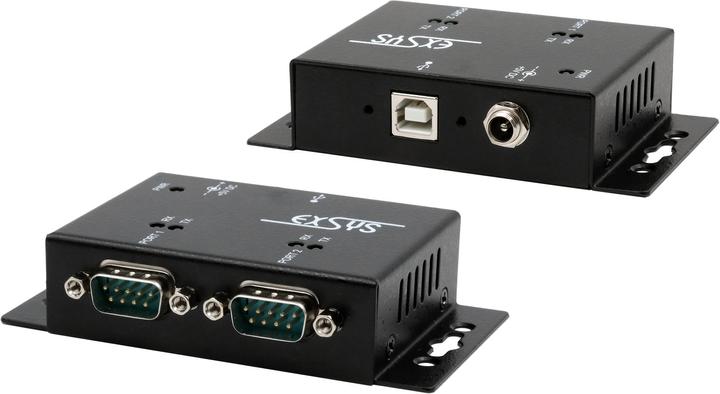

The EX-1332HMV USB 2.0 to Serial RS-232 in a metal housing provides two serial RS-232 High Performance UART 16C550 outputs. Both ports have the option to apply 5V DC power to pin 9 of the connector using an internal jumper. It is designed to expand two additional serial outputs in a robust metal case for desktop computers or laptops via the USB 2.0 bus. The included cable EX-K1542V A-plug to B-plug can be attached to the EX-1332HMV without a screwdriver using thumb screws, ensuring that the cable cannot come loose on its own. The EX-1332HMV features LED indicators for data transmissions and can optionally be installed on a mounting rail in a 19" rack using the EX-6099 (DIN-Rail Kit).

Interface: RS-232 V.24

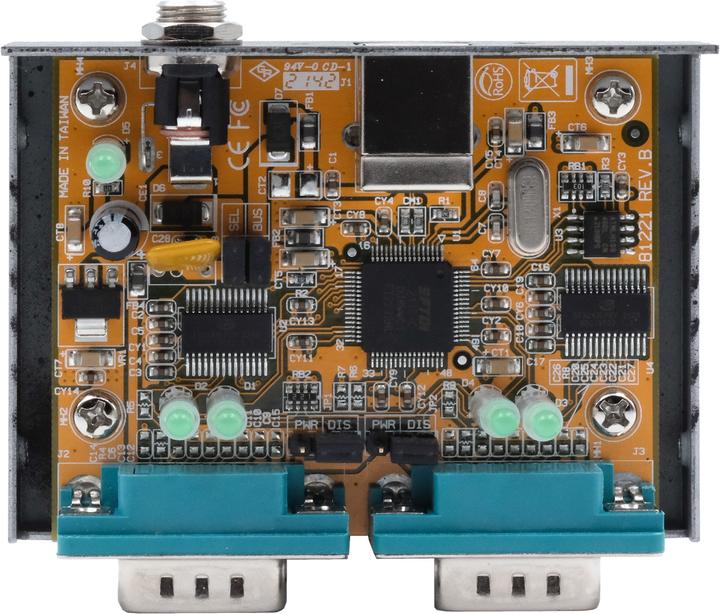

5V DC power to pin 9 of the connector possible with internal jumper
FIFO Buffer: 16C550 with 16 bytes
I/O addresses and interrupts: assigned by the operating system
Data Bits: 7 and 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
RS-232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power supply from USB bus (Bus Power)

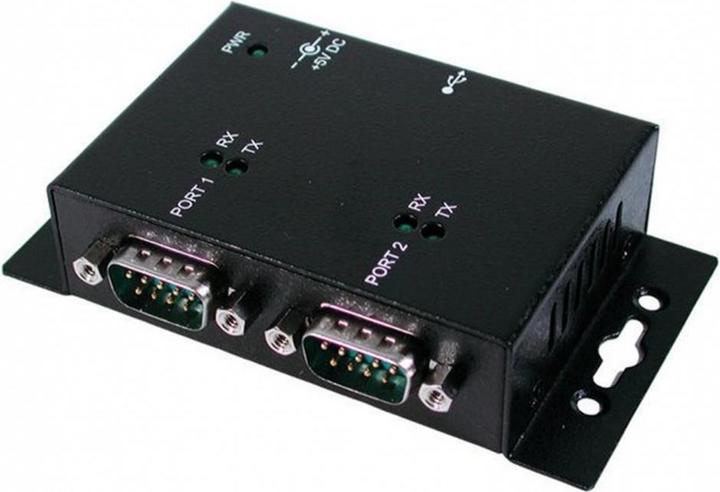

LED indicators for TX and RX active
Chipset: FTDI

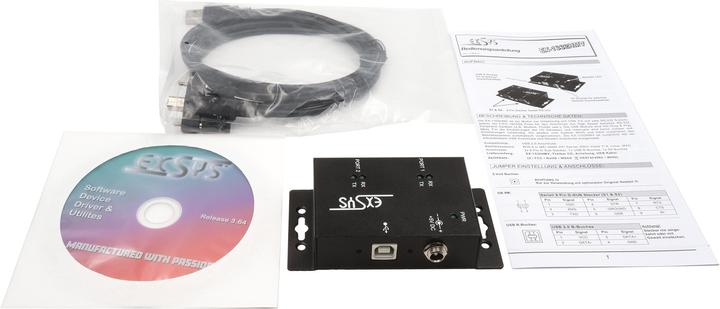

Scope of delivery:
EX-1332HMV, USB 2.0 cable, driver CD, manual.

Key specifications

Connection A
USB-A
Connection B
RS-232
Documents
Technical data sheet.pdf, Manual.pdf
Item number
5827314

General information

Manufacturer
Exsys
Category
Converters
Manufacturer no.
EX-1332HMV
Release date
26.10.2011

Converter properties

Connection A
USB-A
Connection B
RS-232

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Package dimensions

Length
24.60 cm
Width
17.20 cm
Height
5.70 cm
Weight
378 g
