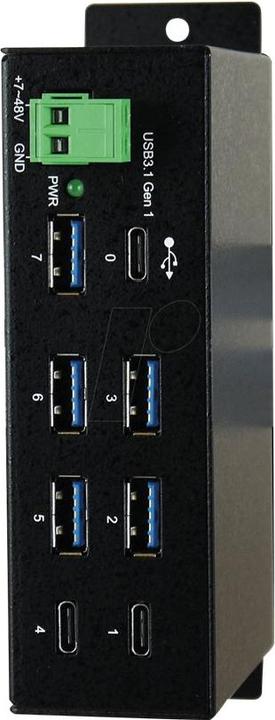

Exsys EX-1196HMS, 7xUSB 3.0/3.1 Metal HUB

The EX-1196HMS is a USB 3.2 Gen 1 metal hub that complies with the specifications of the Universal Serial Bus (USB) Revision 3.2 Gen 1 and operates at a data speed of up to 5 Gbps. It features a USB-C upstream port and 7 downstream ports with two USB-C and five USB-A connectors. The EX-1196HMS supports 15 kV ESD overvoltage protection for each port. Ports 1 and 4 are equipped with a USB-C socket, allowing for the connection of up to seven external USB peripherals to a USB 3.2 Gen 1 port from the computer in a 19" rack. The hub meets the specific requirements of industrial applications.

USB 3.2 Gen 1 metal hub with two USB-C and five USB-A downstream ports
15 kV ESD overvoltage protection for each output
Power supply +7 V to +48 V DC via terminal block
Automatic detection of input polarity at the power terminal block
Power supply optionally also from USB bus +5 V (Bus-Power)
900 mA power on all 7 ports
Fast USB battery charging with CDP and DCP mode

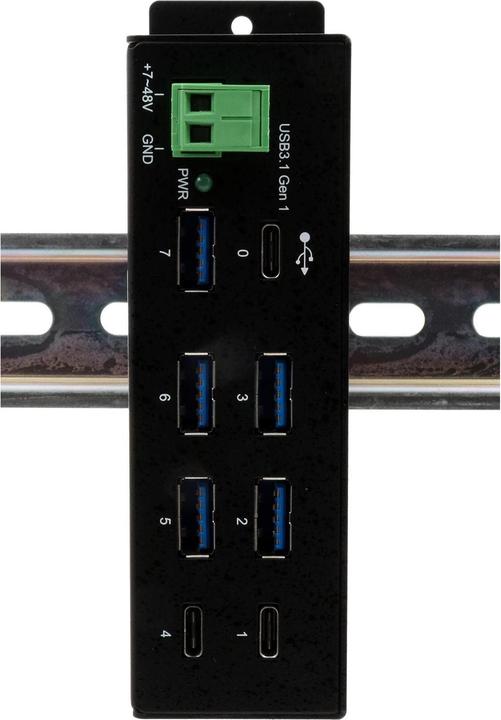

Easy installation with integrated DIN rail mounting bracket
Supports all USB 1.1 to 3.2 Gen 1 compatible peripherals
Compact industrial design with a robust metal housing
LED voltage indicator

Internal jumper for individual power control:

• ENA = Bus power operation possible
• DIS = Operation only with power supply possible (Self Power)

Delivery includes:
EX-1196HMS, USB A-to-C 3.2 Gen 1 cable, DIN rail kit, manual.
