Exsys 2S Serial RS-232/422/485 PCIe card, POS adjustable (FTDI chip set)

Ratings
BrandMore from Exsys
Delivered between Sat, 5.7. and Wed, 9.7.
8 pieces in stock at supplier
free shipping

Product details

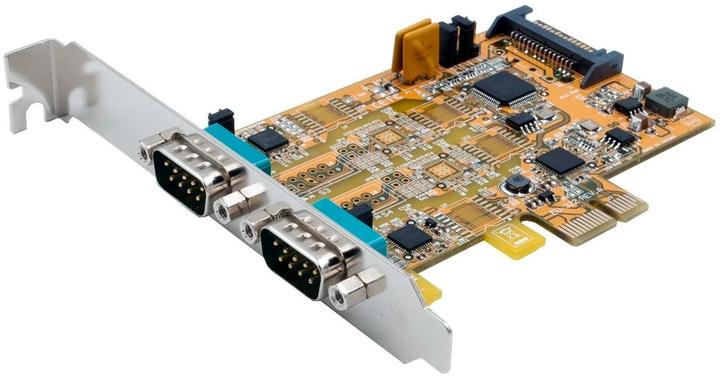

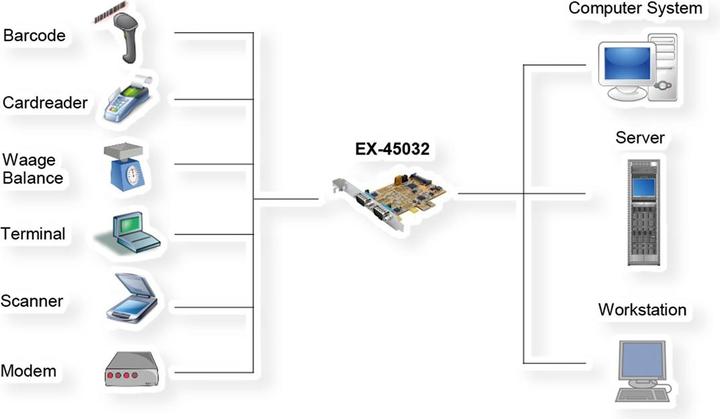

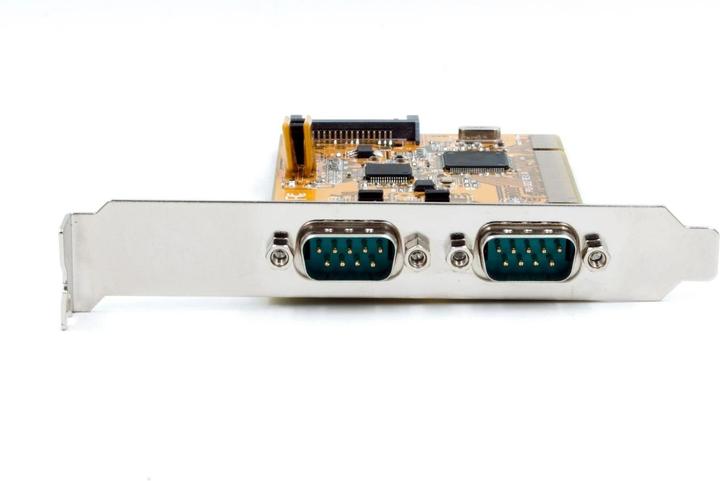

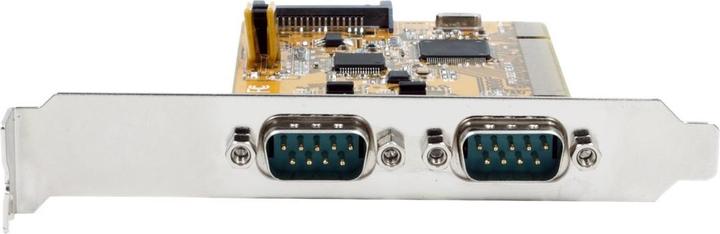

The EX-45032 PCI I/O card provides two serial RS-232, 422, and 485 high-performance UART 16C550 outputs. It is designed to expand two additional serial ports for PCs, workstations, or servers via the PCI or PCI-X bus. +5V and +12V can be configured on pin 9 of the serial connector as a POS system (Power over System). The card is fully Plug-and-Play compatible. It supports ATTA Auto RS-485 transmitter features. The transmission type (RS-232, 422, or 485) can be individually set for each port.

Interface: RS-232 V.24 / RS-422 / RS-485
±15kV IEC1000-4-2 ESD protection for RS232 I/O
FIFO buffer 16C550 with 16 bytes
I/O addresses and interrupts are assigned by the operating system
Data bits: 7 and 8 / Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, and mark
Supports ATTA Auto Transmitter

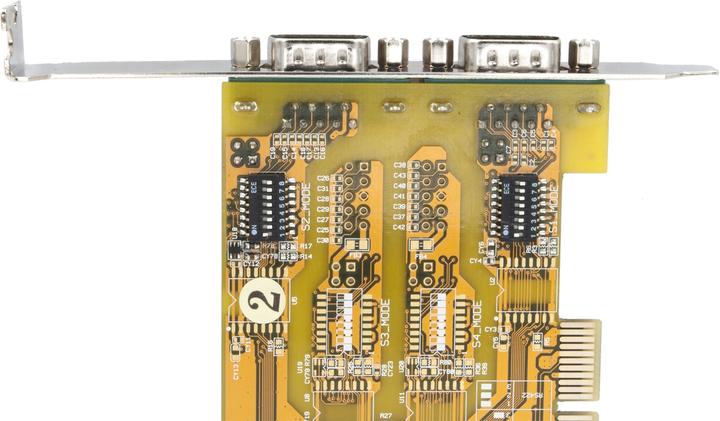

Termination RS-422/485 - 120 Ohm can be enabled or disabled

Signals:
RS-232 - TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 - 4 wire (TxD+/-, RxD+/-) Full duplex
RS-485 - 4 wire (TxD+/-, RxD+/-) Full duplex
RS-485 - 2 wire (Data+/-, Data+/-) Half duplex

Chipset: FTDI

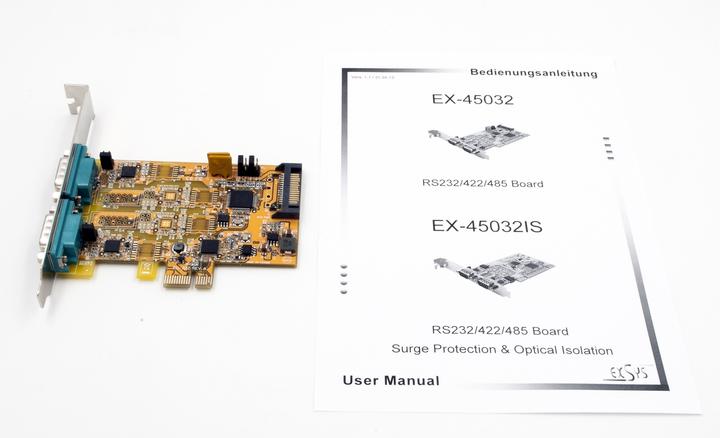

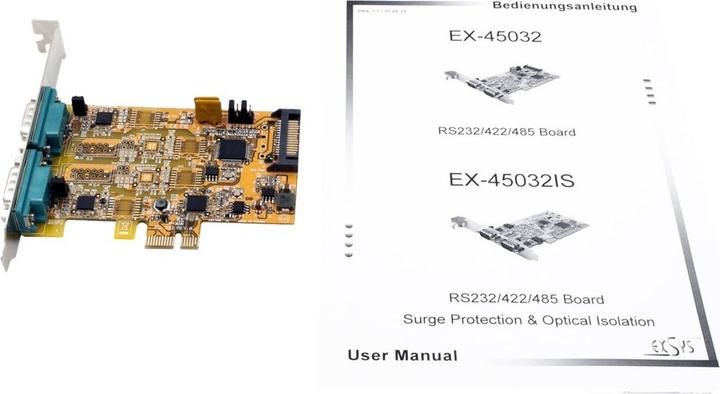

Package contents:
EX-45032, driver CD, manual.

Key specifications

Expansion card form factor
Full Profile
Data ports
RS-232 (2x)
Internal connection options
PCI Express x1
Expansion slot
PCI Express x1 (1x)
Documents
Technical data sheet.pdf, Manual.pdf
Item number
14257085

General information

Manufacturer
Exsys
Category
Controller cards
Manufacturer no.
EX-45032
Release date
13.1.2020

Controller properties

Expansion card form factor
Full Profile

Peripheral port

Peripheral connections
RS-232
Data ports
RS-232 (2x)

Internal interfaces

Internal connection options
PCI Express x1
Expansion slot
PCI Express x1 (1x)

Origin

Country of origin
Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
200 g
Width
112.30 mm
Length
120 mm

Package dimensions

Length
22.60 cm
Width
15.40 cm
Height
4 cm
Weight
153 g

30-day right of return
24 Months Warranty (Bring-in)
