Eurolite DXT DMX Pixel Converter PRO

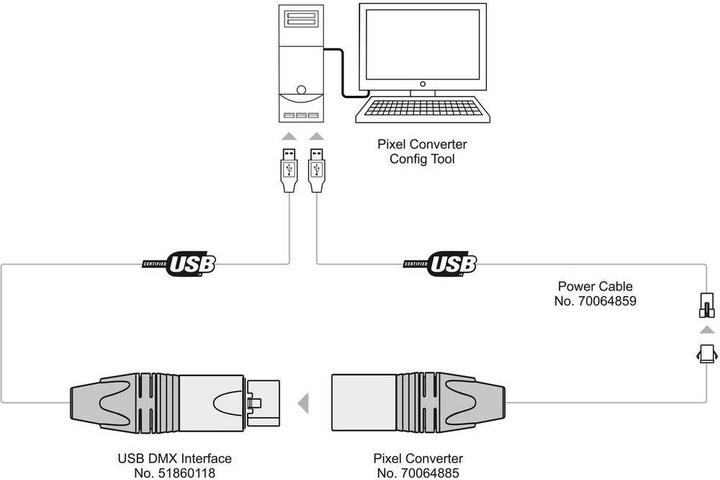

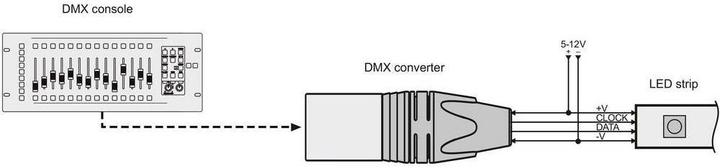

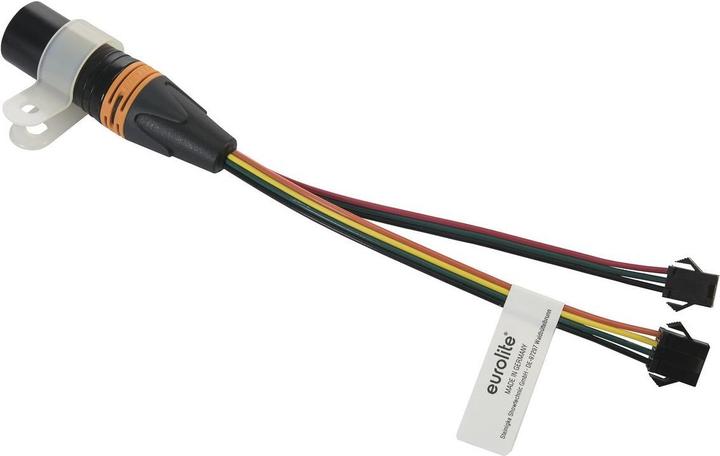

Compact DMX converter for LED pixel strips. Enables control of up to 18,000 digital LED pixels via DMX512 signal. Extremely compact design in XLR connector. 1 x DMX input via 3-pin XLR connector (Neutrik). 1 x 4-pin socket (female) with data and clock output. 1 x 3-pin socket (female) with data output. Grouping multiple LEDs into virtual pixels: For example, an LED strip with 300 LEDs can be controlled with 3 DMX channels. 1 to 6 colors per pixel. Output frequency: DMX, 40 Hz, 20 Hz, 10 Hz, 5 Hz. Supported LED types: WS2801, WS2811, WS2812, etc. (all common 800 kHz types). Does not require a separate power supply - powered through the LED strip (5-12 V). Comes with a plastic clamp for mounting. Configuration via software tool (Windows) and the Eurolite USB-DMX adapter. The "Pixel Converter Config Tool" is available for download on the product page. Made in Germany.
