ESI Aktiv 05 Active Monitor Box, 1 piece. Active 2-way speaker with amplifier. 5" woofer, 1" silk dome tweeter. Magnetically shielded. XLR/Jack combo input for balanced/unbalanced connections. Standby function. Input level adjustment control. Frequency response: 50 - 20,000 Hz. Output power: 60 W (RMS). Dimensions: 250 x 176 x 200 mm (H x W x D). Weight: 4.5 kg.
Delivery includes: Single Aktiv 05 box (not a pair).
With the Aktiv 05 active monitor box, ESI introduces a speaker that offers very high sound quality and sound transparency. In its price range, the ESI Aktiv 05 is among the best nearfield monitors. The Aktiv 05 model is designed for use in project studios and is equipped with a 1-inch silk dome tweeter and a 5-inch woofer. The output power is 60 watts, covering a frequency range of 50-20,000 Hz. Compared to the successful predecessor model nEar 05, this version features a new tweeter, improved suspension, and a completely new crossover (at 2.5 kHz). The combination of the woofer with the appropriate tweeter and the crossover allows the ESI Aktiv 05 to achieve a faithful reproduction of sound.

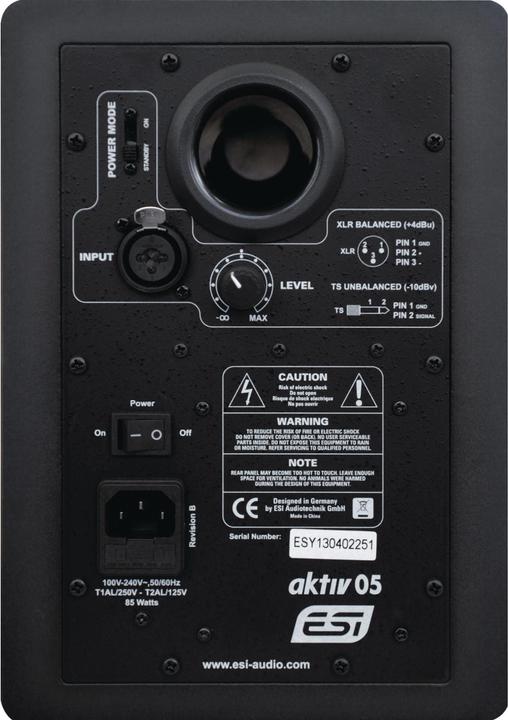

On the back of the compact and fully magnetically shielded monitor box, there is an XLR and jack combo input for balanced and unbalanced connections, as well as a control for adjusting the input level.
Note: Only one box included - the box is sold individually, not as a pair.
Technical specifications: Input impedance: 23.3 kOhm balanced, 13.3 kOhm unbalanced. Input sensitivity: 75 mV@1 Watt, 415 mV@30 Watts. Crossover frequency: 2.5 kHz. SPL: 88 dB +/- 3 dB. Power supply: AC 100-240 V, 50/60 Hz, voltage switch 115 V / 230 V.
Delivery includes: 1x ESI Aktiv 05 Monitor Box.
Speaker type | Midfield monitor |
Loudspeaker construction | Active speakers |
Number of speakers | 1 piece |
Music power (RMS) | 1x 60 W |
Audio inputs | 6.3 mm jack (1x), XLR (1x) |
Documents | Manual.pdf |
Item number | 438192 |
Manufacturer | ESI Audiotechnik |
Category | Monitor speakers |
Manufacturer no. | ESI aktiv 05 |
Release date | 31.8.2012 |
Colour | Black |
Exact colour description | Black |
Monitor Loudspeaker Equipment | Volume control |
Type | Compact speakers |
Speaker type | Midfield monitor |
Loudspeaker construction | Active speakers |
Use | Studio |
Number of speakers | 1 piece |
Frequency range | 50 - 20000 Hz |
Music power (RMS) | 1x 60 W |
Maximum load | 60 W |
Speaker principle | 2-way |
Tweeter type | Dome tweeter |
XLR version | XLR/6.3mm Combo |
Jack 6.3mm version | XLR/6.3mm Combo |
XLR version | XLR/6.3mm Combo |
Jack 6.3mm version | 6.3mm Jack (Stereo) |
Audio inputs | 6.3 mm jack (1x), XLR (1x) |
Various connectors | XLR |
Power supply | Electrical connection |
Country of origin | China |
CO₂ emissions | 562.3 kg |
Climate contribution | CHF 5.69 |
Scope of delivery | Instruction manual |
Depth | 200 mm |
Width | 176 mm |
Height | 250 mm |
Weight main speaker | 4.50 kg |
Weight | 4.50 kg |
Length | 34 cm |
Width | 26.70 cm |
Height | 27.30 cm |
Weight | 4.90 kg |
