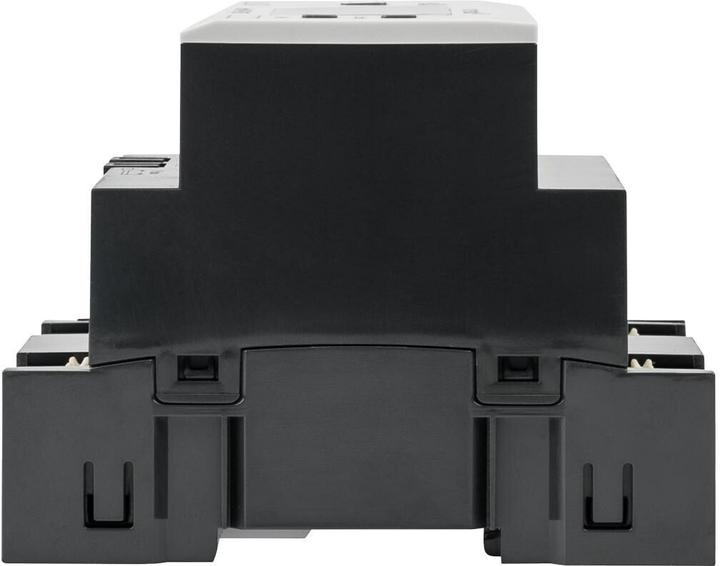

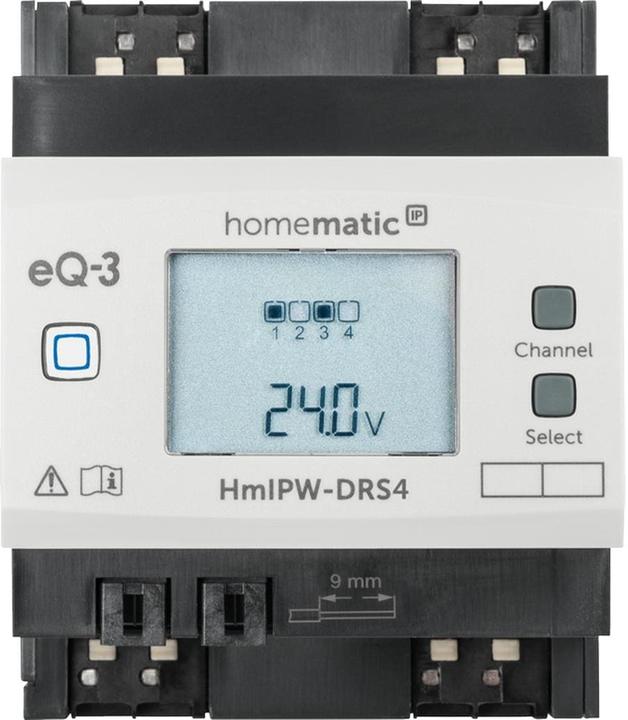

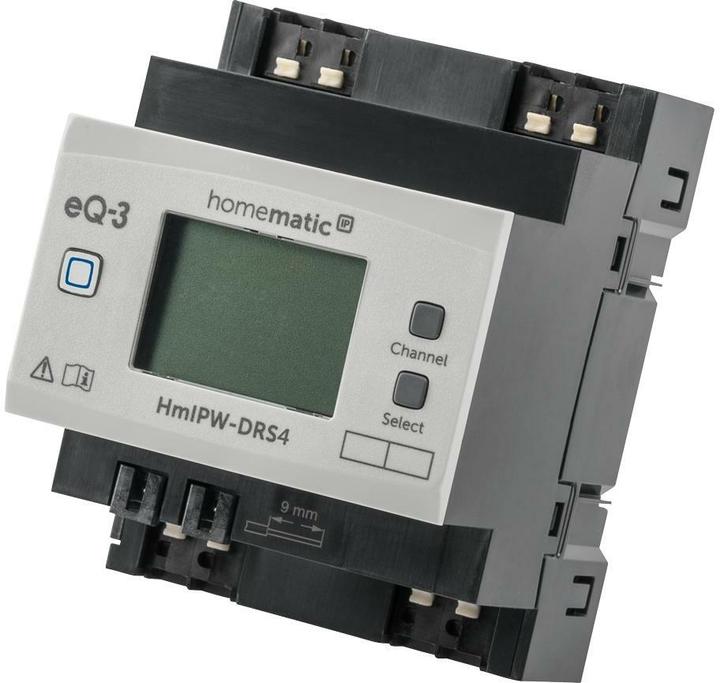

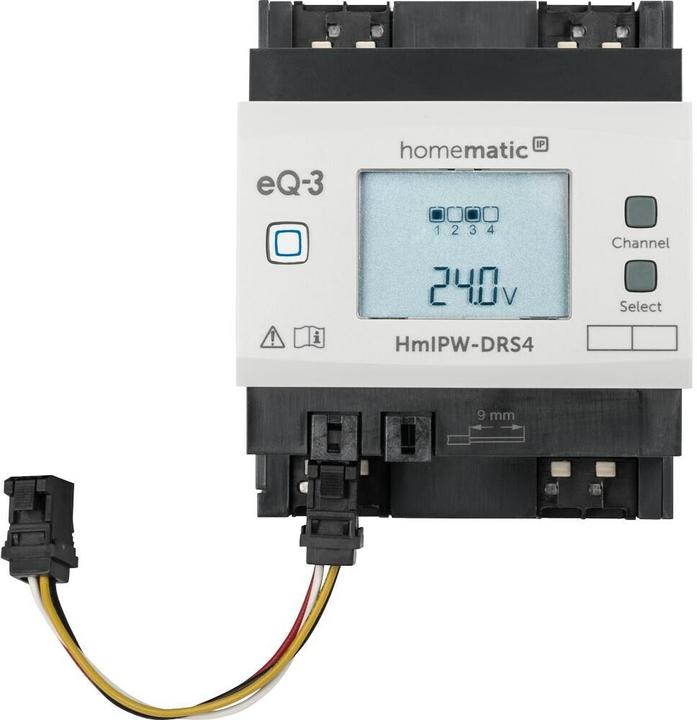

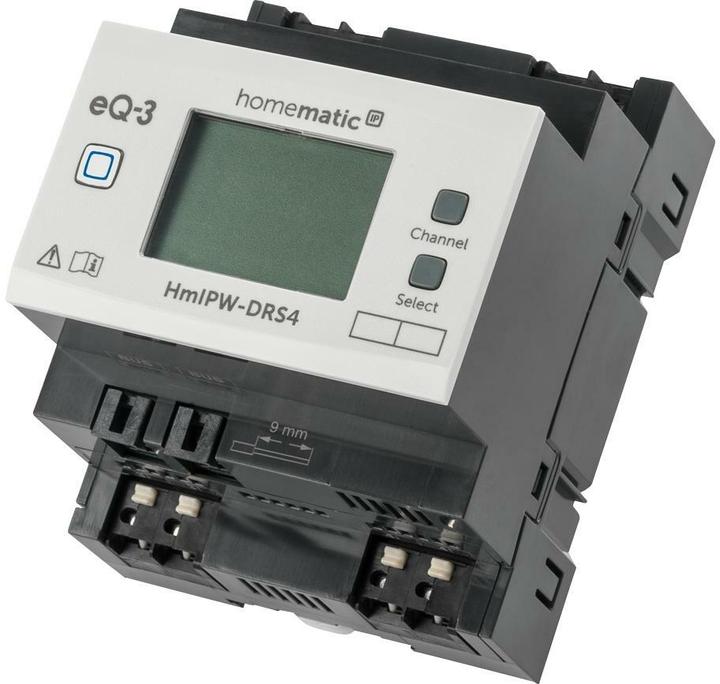

EQ-3 HomeMatic IP Wired switching actuator 4-gang HmIPW-DRS4

Control four electrical consumers independently and comfortably while automating switching processes. With numerous available configuration options, different operating modes, time controls, sensor dependencies, and many other configurations can be programmed and controlled separately for each channel. The time profiles for control are stored directly in the actuator after configuration, allowing it to perform its tasks autonomously even in the event of a temporary failure of a central unit. In conjunction with the CCU3, the virtual actuator channels of the actuator enable easily realizable priority controls. It switches connected consumers (e.g., lights) on and off via four independent channels (one normally open contact per channel, bistable, total load capacity up to 64 A). It allows flexible control of connected consumers via conventional wired buttons or Homematic IP wireless buttons and remote controls. Astro function and time profiles can be set per channel and are securely stored directly in the device. Easy operation and commissioning directly on the device through an integrated, illuminated LC display. Simple installation and wiring through DIN rail mounting (TS35, mounting width 4TE) and spring-loaded terminal connections for rigid and flexible wires, connectors for bus connections, and tool-free wiring. Voice control with Amazon Alexa and Google Assistant is possible (when used with the Homematic IP app). A Homematic IP Wired Access Point is required for operation. The wired system can be controlled via the Smart Home Central CCU3, through many partner solutions, or directly via the Homematic IP Cloud. The joint operation of Homematic IP wireless and wired components is achieved through the combination of the Homematic IP Wired Access Point DRAP with the Homematic IP Access Point AP or locally with the Smart Home Central CCU3. VDE certified.
