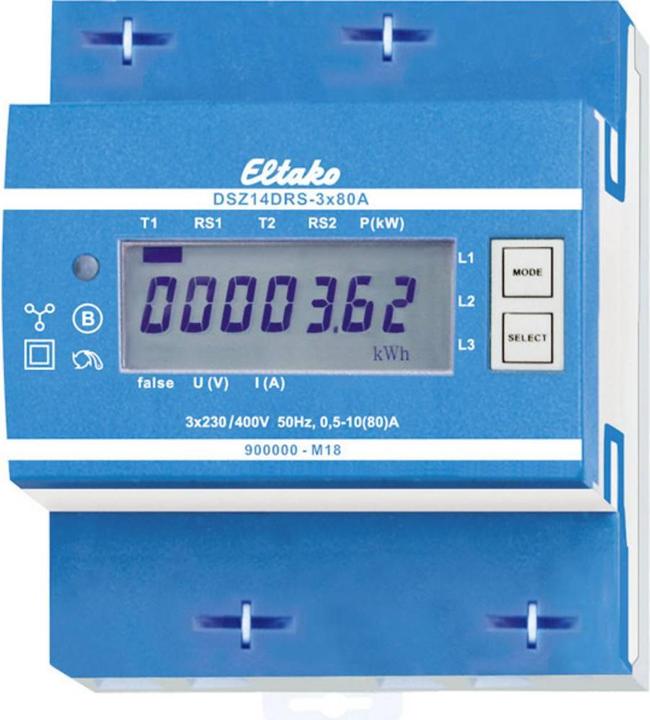

Only calibrated meters are approved for electricity billing according to §25 of the German Calibration Act. Non-compliance is an administrative offense under §19. RS485 bus radio three-phase meter. Maximum current 3x80A, standby loss only 0.8 watts on L1 and 0.5 watts each on L2 and L3. Accuracy class B (1%). With RS485 interface. The directly measuring three-phase meter measures the active energy based on the currents flowing between the inputs and outputs. The self-consumption of only a maximum of 0.8 watts or 0.5 watts active power per path is not measured and not displayed. 1, 2, or 3 external conductors with currents up to 80A can be connected. The starting current is 40 mA. Connections L1 and N must be present. Connection via an FBA14 to the Eltako RS485 bus with a 2-wire shielded bus line (e.g., telephone line). The meter reading and instantaneous power are transmitted to the bus - e.g., for forwarding to an external computer or the GFVS 3.0 software - and also via the FAM14 into the radio.
measurement module | Kilowatt hours |
Maximum current | 80 A |
Energy meter type | Energy meter |
Nominal voltage | 400 V |
Mounting type | Top-hat rail |
Item number | 12745031 |
Manufacturer | Eltako |
Category | Energy monitors |
Manufacturer no. | 28365715 |
Release date | 17.2.2020 |
Colour | Blue |
Exact colour description | Blue |
Energy meter type | Energy meter |
Mounting type | Top-hat rail |
measurement module | Kilowatt hours |
Maximum current | 80 A |
Nominal voltage | 400 V |
Display type | Digital |
Tariff execution | Second tariff |
Pulse output | Electrical |
Polar type | Four-wire |
Accuracy class | B |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Height | 58 mm |
Length | 58 mm |
Width | 70 mm |
