Product details

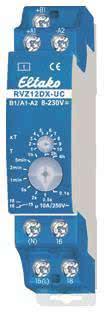

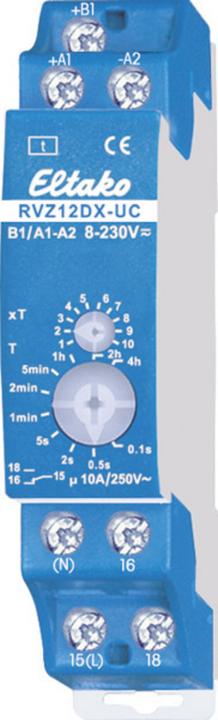

Analog adjustable time relay. Standby loss only 0.02 - 0.4 watts. This analog adjustable time relay is identical in design to the multifunction time relay but has only one function. To connect, simply attach the neutral conductor to terminal (N) and the live conductor to terminal 15 (L). This results in an additional standby consumption of only 0.1 watts. Universal control voltage of 8 to 230 V UC. Supply voltage is the same as the control voltage. Time range from 0.1 seconds to 40 hours. By using a bistable relay, there is no coil loss power and no heating even when switched on. After installation, wait for the automatic short synchronization before connecting the switched load to the power supply. The LED under the large rotary switch indicates the contact position during the timing process.
