Eltako Impulse switch

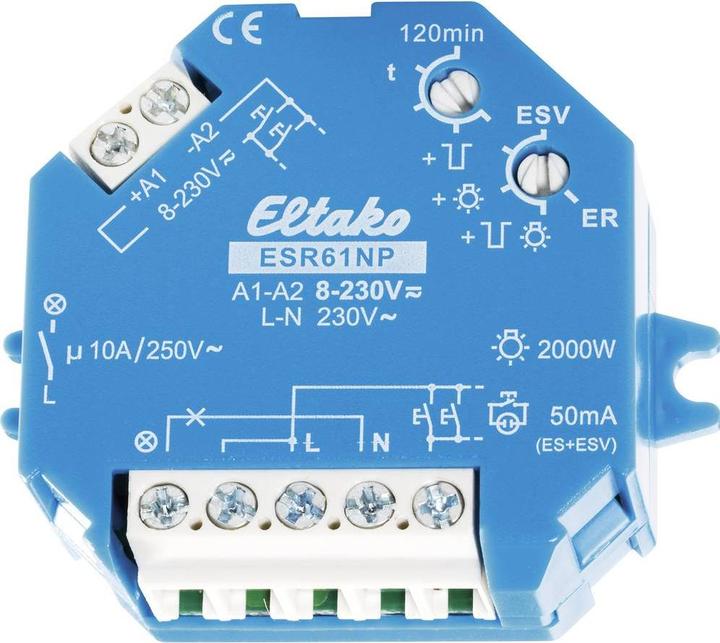

The Eltako ESR61NP-230V+UC pulse switch is an electronic switching actuator designed for flush mounting. With a nominal voltage of 230 V and a maximum switching power of 2000 W, this device is ideal for controlling lighting systems. The switch features a normally closed contact that is not potential-free and supports a rated current of 10 A. The innovative hybrid technology combines the advantages of a wear-free electronic control with the high performance of special relays, resulting in high efficiency and longevity. A notable feature is the fallback delay with a switch-off warning, which allows for user-friendly operation. The stand-by loss is only 0.7 watts, contributing to energy savings. The zero-crossing contact switching protects both the contacts and the connected lamps, thereby extending the lifespan of the components. The Eltako pulse switch is thus a reliable and modern solution for controlling electrical loads in residential and commercial buildings.

• Fallback delay with switch-off warning
• Stand-by loss of only 0.7 watts
• Zero-crossing contact switching to protect the contacts
• Bistable relay for no coil loss in the switched-on state
• Suitable for controlling LED and incandescent lamps up to 2000 W.
