Eltako Impulse switch

5Ratings
BrandMore from Eltako
Delivered between 2.1.2026 and 9.1.2026
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

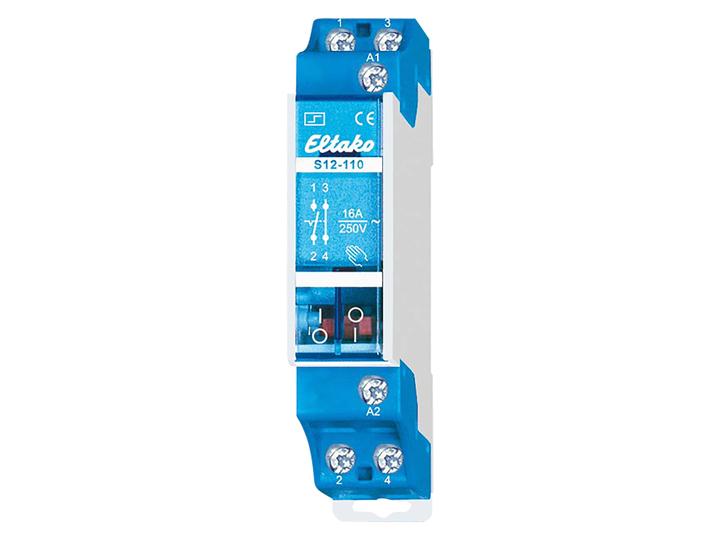

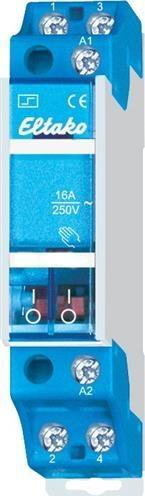

Eltako impulse switch f.series S12-110-230V
Manufacturer: Eltako
Designation: Impulse switch f.series
Type: S12-110-230V
Function: Other
Mounting type: DIN-rail
Width in units: 1
Installation depth: 55 mm
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Control voltage 1: 230 V
Control voltage type 1: AC
Frequency of control voltage 1: 50 Hz
Rated switching current: 16 A
Max. incandescent lamp load: 2300 W
Max. fluorescent lamp load: 2300 VA
Max. load of fluorescent lamps (duo circuit): 2300 VA
Max. fluorescent lamp load (parallel compensated): 2300 W
Fluorescent lamp load (parallel compensated): 500 VA
Max. switching current (cos phi: 0 A)
Switching current (cos phi: 0.6): 10 A
Suitable for manual operation: No

Eltako impulse switch f.series S12-110-230V: more details
Electromechanical impulse switch with manual operation and switch position indication. Duty cycle 100%. Control power requirement 5-6 W. Contact distance 3 mm. Distance control terminals/contact > 6 mm. EAN: 4010312100516.

Key specifications

Scope of delivery
Impulse switch f.series. 1S1Ö 16A
Output current type
AC
Relay type
Step switch
Electric current output
16 A
Output voltage
230 V
input voltage
230 V
Item number
20021333

General information

Manufacturer
Eltako
Category
Relays
Manufacturer no.
21110030
Release date
16.3.2022

Relay properties

Relay type
Step switch
input voltage
230 V
Output voltage
230 V
Electric current output
16 A
Output current type
AC
Switching function
Normally open
Number of openers
1x
Number of closers
1x
Max. Switching capacity
2.30 kW

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Impulse switch f.series. 1S1Ö 16A

Product dimensions

Length
55 mm
Height
7 mm
Weight
110 g

Package dimensions

Length
10 cm
Width
7 cm
Height
2 cm
Weight
50 g
