Product details

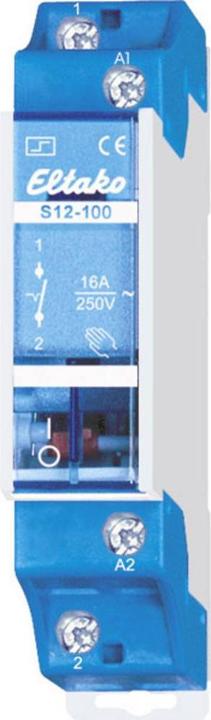

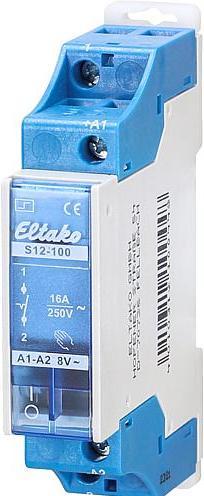

The Eltako S12-100-8V pulse switch is an electromechanical device designed for use in electrical installations. It features manual operation and a switching position indicator, allowing for easy handling and monitoring of the switching process. With a duty cycle of 100%, this switch is suitable for continuous operation. The pulse switch has a control power requirement of 5-6 W and is suitable for connection to a SELV network. Its mechanical design allows for easy mounting on a 35 mm DIN rail. The switch is equipped with screw terminals that provide a secure connection for cable cross-sections of up to 6 mm². The contact gap is 3 mm, and the distance between the control terminals and the contact is greater than 6 mm, ensuring additional safety. The switch is single-pole and can operate with a switching contact of 250 V/16 A.

  • Mechanical design for easy mounting on DIN rail
  • Manual operation and switching position indicator for user-friendliness
  • Suitable for SELV network connection
  • Screw terminals for cable cross-sections up to 6 mm²
  • Single-pole switching contact with 250 V/16 A.

Key specifications

Relay type
Step switch
input voltage
230 V
Output voltage
8 V
Electric current output
16 A
Output current type
AC/DC

General information

Item number
20021332
Manufacturer
Eltako
Category
Relays
Manufacturer no.
21100010
Release date
16.3.2022
External links
Manufacturer's site (de)

Relay properties

Relay type
Step switch
input voltage
230 V
Output voltage
8 V
Electric current output
16 A
Output current type
AC/DC
Switching function
Normally open
Number of closers
1x
Max. Switching capacity
2.30 kW

Smart home features

Smart home
Compatible

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
10.67 kg
Climate contribution
CHF 0.25

Scope of delivery

Scope of delivery
Impulse switch f.series. 1S 16A

Product dimensions

Length
18 mm
Height
55 mm
Weight
100 g

Package dimensions

Length
8.20 cm
Width
6.10 cm
Height
1.60 cm
Weight
93 g
