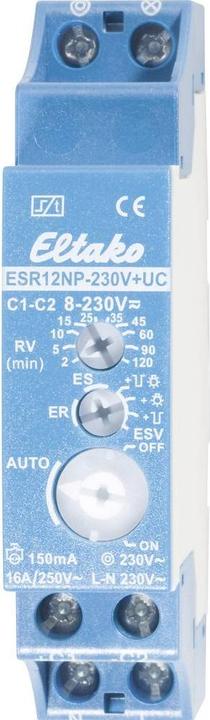

Eltako Impulse switch

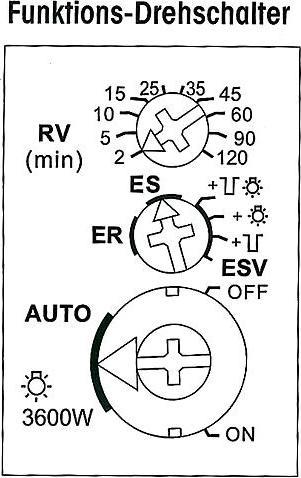

EltaKo pulse relay. Delay reset with pre-warning for disconnection and permanent light switchable. Standby loss of only 0.5 watts. Contact switching at zero crossing to protect contacts and lamps, especially extending the lifespan of energy-saving lamps. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. Control voltage additionally with galvanically isolated universal control voltage. Very low switching noise. Precise time setting of the reset delay RV in the ESV function from 2 to 120 minutes with minute scale. With control LED that blinks after 15 minutes if the button is blocked (not in the ER function). At the 230V control input, glow lamp current up to 150mA, independent of the ignition voltage (not in the ER function). Suitable for feedback in relay functions with the switching voltage of a dimmer switch. In the event of a power supply failure, it is defined to turn off. The pulse switch automatically turns off after the set delay time if the manual off command is not given.
