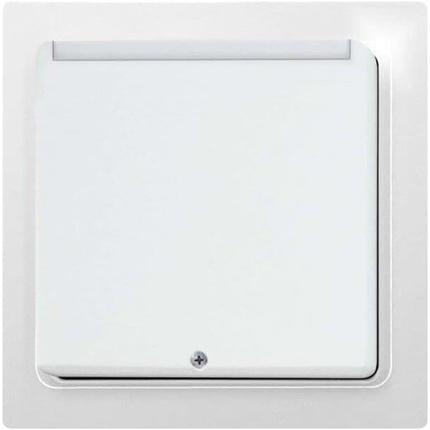

Eltako FKF65-wg Radio switch surface-mounted Range max. (in free field) 30 m

Radio card switch in pure white glossy finish for surface mounting 84x84x29 mm or for installation in the E-design switch system. It generates the energy for radio telegrams itself, thus eliminating the need for a connection cable and preventing standby loss. Smart Home sensor. When inserting and removing a hotel key card in the standardized credit card format 86x54 mm, a radio telegram is sent to the Eltako building radio each time. The delivery includes fully assembled the two-part card guide, a frame R1E, a mounting frame, a holding plate, and a radio module, as well as two screws with dowels.

Installation by screwing: First, disassemble the fully assembled card switch. To do this, remove the screw, detach the card guide, and take out the intermediate frame including the transmission module by loosening the holding brackets at the top and bottom. Secure the holding plate by screwing it in. Snap the frame with the hanging cutouts at the top onto the intermediate frame including the transmission module, with the rear marking 0 facing up. Hang the card guide into the upper hanging cutouts of the frame and screw it down at the bottom with the screw into the holding plate. Worn card guides can be easily replaced without having to change the transmission module.

Compatible actuators: Specifically designed for control with the radio card switch FKF, the radio time relays for the card switches FZK14 and FZK61NP have been developed. In these switching relays, a fallback delay and a response delay can be set. If higher loads than specified in the technical data are to be switched, the actuator must switch a relay. In this case, do not activate the zero-crossing switching on the FZK14. The radio module contained in the radio card switch can be encrypted according to the operating instructions into the encryptable actuators of series 61 and 71 as well as into the FAM14.
