Eltako FGTZ-230V

Eltako Wireless Garage Door FGTZ-230V

Manufacturer: Eltako
Description: Wireless Garage Door Plug
Type: FGTZ-230V
KNX Bus System: no
KNX Wireless Bus System: no
Wireless Bus System: yes
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: yes
Mounting Type: Plug
Local/Manual Operation: no
With LED Display: no
Max. Switching Power: 30 W
Suitable for C-Load: no
Max. Number of Switching Outputs: 1
Max. Switching Current: 1 A
Rated Current: 16 A
Rated Operating Voltage: 230 V
Connectable to Different Phases: no
With Bus Coupling: yes
Bus Module Removable: no
Modular Expansion Option: no
Protection Class (IP): IP20

Eltako Wireless Garage Door FGTZ-230V: additional details

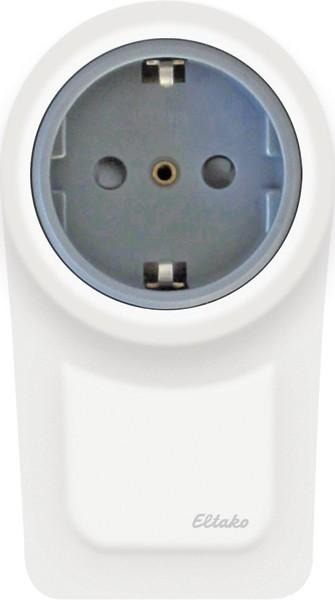

Wireless garage door plug. Dimensions: 100x55x45 mm (without plug), pure white. With potential-free switching contact output for a maximum of 30 V/1 A. Encrypted wireless, bidirectional wireless, and repeater function can be activated. Standby loss is only 0.8 W. Smart Home Sensor. Plug for German protective contact sockets with increased touch protection. The protective contact socket (16 A) is directly connected to the protective contact plug, so no power socket is blocked, and the power plug of the garage door opener can be plugged directly in here. To control the garage door opener with additional wireless buttons, its connection terminals for an external potential-free button (contact) are connected to the pluggable screw terminals of the potential-free switching contact output of the actuator. Only safety extra-low voltage (SELV) may be switched! With the convenient tap technology, up to 24 wireless universal buttons and wireless direction buttons can be learned. For the wireless direction button to function as such, an additional wireless window/door contact must be learned, which reports whether the garage door is open or closed.
EAN: 4010312324462.
