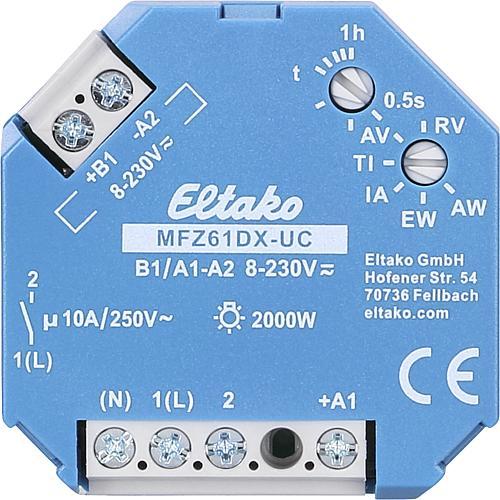

Eltako Analogue adjustable multifunction time relay UC. NO contact potential free
Analogue actuatorSupplied by
GetGoods DE
Free shipping starting at 50.–
Analog adjustable multifunction time relay UC. 1 potential-free normally open contact, 10A/250V AC, incandescent lamps 2000W. Standby loss only 0.02 - 0.4 watts. Designed for installation. Dimensions: 45 mm long, 45 mm wide, 18 mm deep. Contact switching at zero crossing to protect contacts and lamps. This particularly extends the lifespan of energy-saving lamps. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. By using a bistable relay, there is no coil loss and no heating even when switched on. After installation, wait for the automatic short synchronization before connecting the switched load to the mains. Universal control voltage 8..230V UC galvanically isolated from the supply and switching voltage of 230V. Adjustable times between 0.5 seconds and one hour. Functions: RV = fall-back delay. AV = response delay. TI = pulse generator with pulse b.
Actuator type | Analogue actuator |
Items per sales unit | 1 x |
Mounting type | Finery |
Item number | 12970700 |
Manufacturer | Eltako |
Category | Actuator |
Manufacturer no. | 61100604 |
Release date | 22.3.2020 |
Sales rank in Category Actuator | 86 of 1474 |
External links |
Material group | Metal |
Material | Copper |
Actuator type | Analogue actuator |
Max. Switching capacity | 2000 W |
rated current | 10 A |
Operating voltage | 230 V |
Number of switching outputs | 1 x |
Mounting type | Finery |
Mounting type | Screw fastening |
Smart Home | Not compatible |
Radio frequency | 50 Hz |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 18 mm |
Width | 45 mm |
Height | 45 mm |
Weight | 50 g |
Length | 9 cm |
Width | 7 cm |
Height | 2 cm |
Weight | 40 g |
