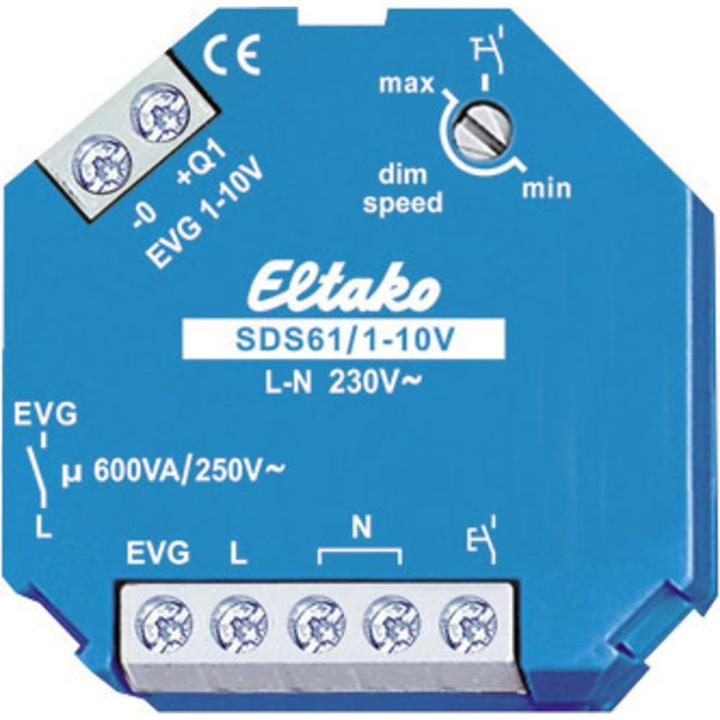

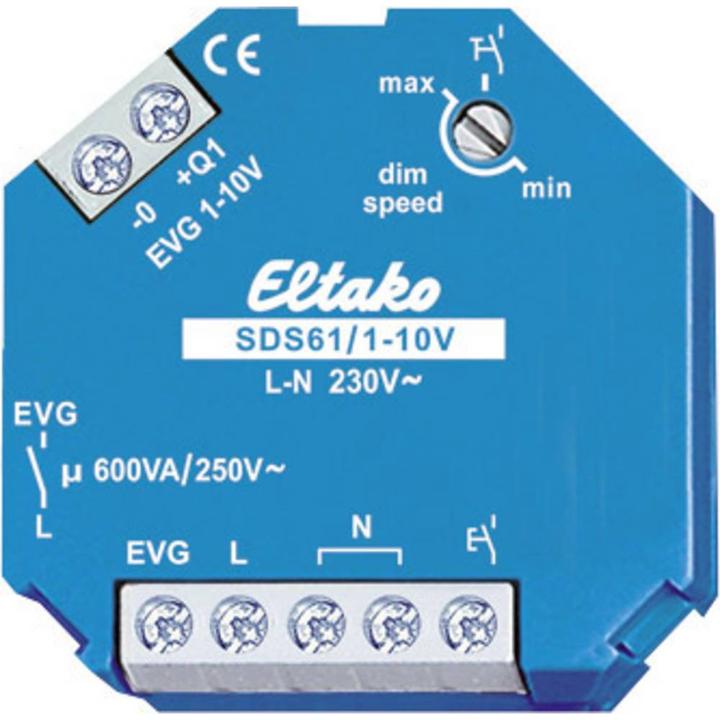

Eltako 110V control dimmer switch 110V for ECG. NO contact not potential-free 600VA and 110V control
Dimming actuatorSupplied by
GetGoods DE
Free shipping starting at 50.–
1-10V control dimmer switch for ECG. Features one normally open contact that is not potential free, rated at 600VA, and a 1-10V control output of 40mA. Standby loss is only 1 watt. Dimming speed is adjustable and includes a nursery and snooze circuit. Can be controlled with a push-button or switch. Designed for recessed mounting with dimensions of 45mm long, 45mm wide, and 33mm deep. Utilizes zero-crossing switching for contact protection. Suitable for controlling LED converters with a passive 1-10V interface without auxiliary voltage up to 0.6mA; above that, auxiliary voltage is required. The switching and control voltage is 230V. State-of-the-art hybrid technology combines the benefits of wear-free electronic control with the high performance of special relays. The load is switched on and off using a bistable relay at the output EVG. It has a switching capacity for fluorescent lamps or low voltage halogen lamps with EVG at 600VA. Due to the use of a bistable relay, there is no coil power loss or heating in the on state. After installation, the device features automatic short circuit protection.
Actuator type | Dimming actuator |
communicating | Wireless |
Items per sales unit | 1 x |
Mounting type | Built-in installation |
Item number | 12745566 |
Manufacturer | Eltako |
Category | Actuator |
Manufacturer no. | 61100800 |
Release date | 17.2.2020 |
External links |
Colour | Blue |
Exact colour description | Blue |
Material group | Plastic |
Material | Plastic |
Actuator type | Dimming actuator |
Max. Switching capacity | 400 W |
rated current | 1 A |
Operating voltage | 230 V |
Mounting type | Built-in installation |
Smart Home | Not compatible |
communicating | Wireless |
Requires Smart Home Hub | No |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 45 mm |
Width | 45 mm |
Height | 33 mm |
Weight | 60 g |
Length | 9 cm |
Width | 7 cm |
Height | 5 cm |
Weight | 60 g |
