Product details

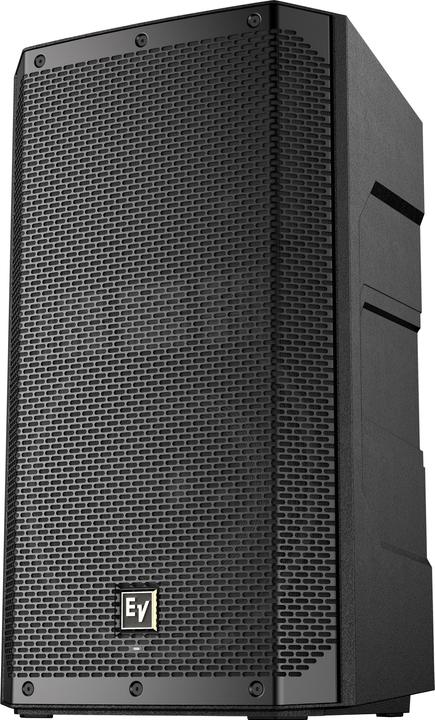

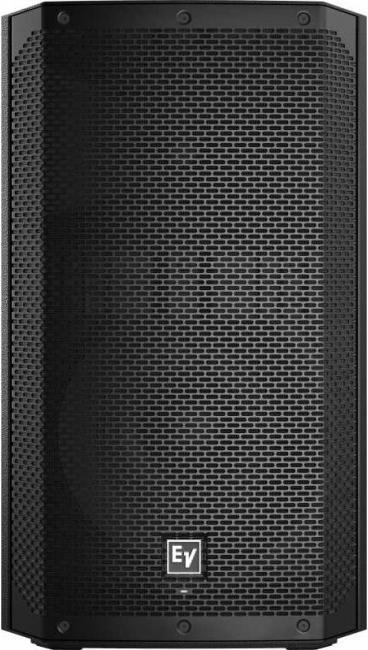

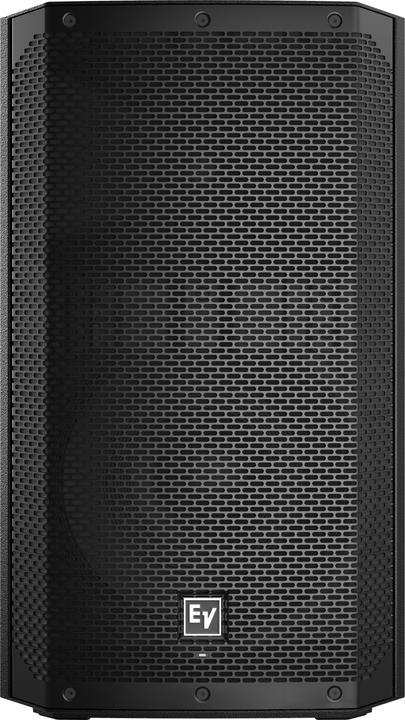

The Electro Voice ELX200-12P is an active speaker featuring a Class-D amplifier that delivers up to 1200 watts of power, along with a QuickSmartDSP that can be easily controlled via a mobile app.
This active speaker is equipped with a 12" high-performance woofer and a 1" titanium compression driver. This combination of drivers ensures a powerful yet balanced sound. The new plastic housing allows for significant weight savings in the ELX200 series. Naturally, the speaker can also be used as a stage monitor, as the housing has a monitor wedge on one side.
Notably, the new QuickSmartDSP can be controlled via an app over Bluetooth. The following features can be easily managed with the app:
- 3-band equalizer
- 4 pre-programmed presets (Music, Live, Speech, Club)
- Edit and recall user programs
- Check limiter status
- Adjust input level
- Adjust master volume
- Set crossover frequency
- If the phone runs out of battery, all settings can be adjusted on the display located on the back of the speaker.

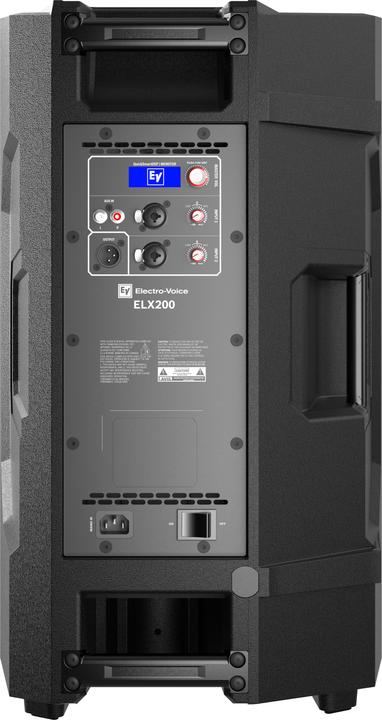

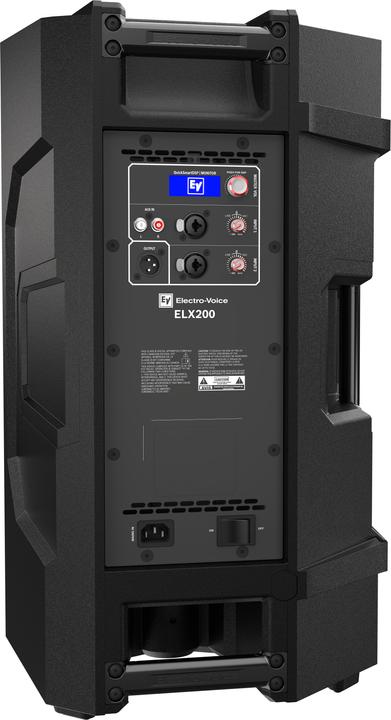

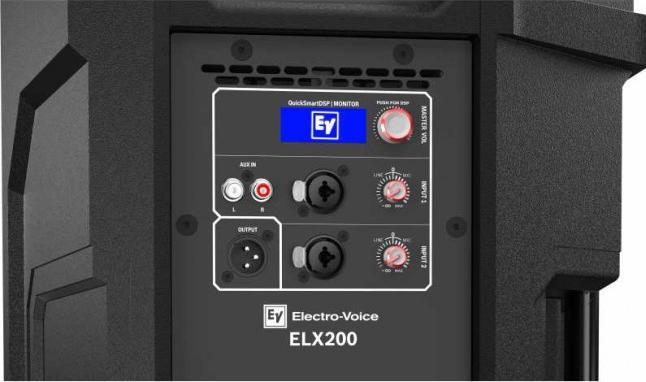

The back also houses various connections. There are 2 combo jacks and an RCA input, which can be used to connect a phone, for example. An XLR output is available for connecting to a subwoofer or another speaker.
The Electro Voice ELX200-12P active speaker is perfect for DJs, bands, singer-songwriters, lecturers, or solo entertainers.
Loudspeaker construction | Active speakers |
Music power (RMS) | 1x 1200 W |
Item number | 8021435 |
Manufacturer | Electro-Voice |
Category | PA speakers |
Manufacturer no. | ELX200-12P |
Release date | 11.3.2018 |
External links |
Material | Titanium |
Loudspeaker construction | Active speakers |
Use | Acoustics/Stage |
Equipment + functions | Remote control |
Number of speakers | 2 x |
Frequency range | 51 - 20000 Hz |
Music power (RMS) | 1x 1200 W |
Audio inputs | XLR (1x) |
Audio outputs | XLR (1x) |
Power supply | Electrical connection |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Remote control |
Depth | 344 mm |
Width | 363 mm |
Height | 629 mm |
Weight | 15.60 kg |
