Elecrow LoRaWAN Gateway ESP32 mit 1.8 Zoll Display 868 MHz

The LoRaWAN Gateway Module from Elecrow is a compact single-channel gateway designed for entry into LoRaWAN technology and the establishment of IoT networks. The powerful ESP32-WROOM-32 serves as the main controller, featuring a dual-core processor that enables both WiFi and Ethernet connectivity. The integrated RA-01H module operates on the European 868 MHz frequency and supports the LoRaWAN protocol 1.0.3 for communication with compatible sensors and devices. The gateway can connect to The Things Network, allowing for cloud-based management and data monitoring.

Features:

• Dual connectivity allows network connection via WiFi or Ethernet depending on requirements
• LoRaWAN 1.0.3 ensures compatibility with standard-compliant sensors and devices

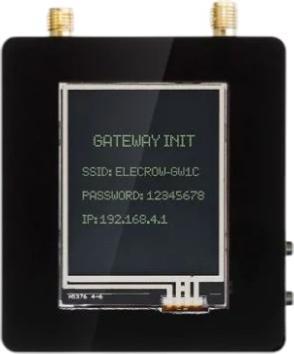

• Integrated 1.8-inch TFT display shows network status, IP address, and transmission data in real-time
• TTN integration enables cloud-based management and data monitoring through The Things Network
• Flexible development supports Arduino and MicroPython for custom applications

Technical Specifications:

• Manufacturer SKU: CRT01262M
• Microcontroller: ESP32-WROOM-32
• Processor: Xtensa Dual-Core 32-bit LX6 @ 240 MHz
• LoRa Module: RA-01H
• Frequency: 868 MHz (EU)
• Modulation Methods: FSK, GFSK, MSK, LoRa
• LoRaWAN Protocol: 1.0.3
• Channels: 1 (Single-Channel)
• Range: Up to 1 km (with obstacles), up to 1.8 km (line of sight)
• WiFi: 2.4 GHz (integrated in ESP32)
• Ethernet: 10/100 Mbps RJ45 (LAN8720A chip)
• Display: 1.8 inch TFT-LCD, 128 × 160 pixels
• Antenna Connector: SMA (WiFi and LoRa)
• Power Supply: USB-C 5 V DC
• Development Environment: Arduino, MicroPython
• Product Dimensions: 65 × 58 mm
• Housing: Acrylic (included)

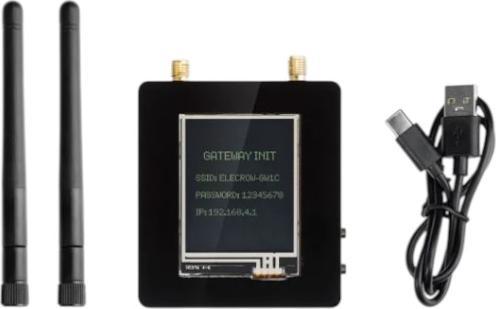

Delivery Contents:

• 1× LoRaWAN Gateway Module with acrylic housing
• 1× LoRa antenna (868 MHz, SMA)
• 1× WiFi antenna (2.4 GHz, SMA)
• 1× USB-C cable.
