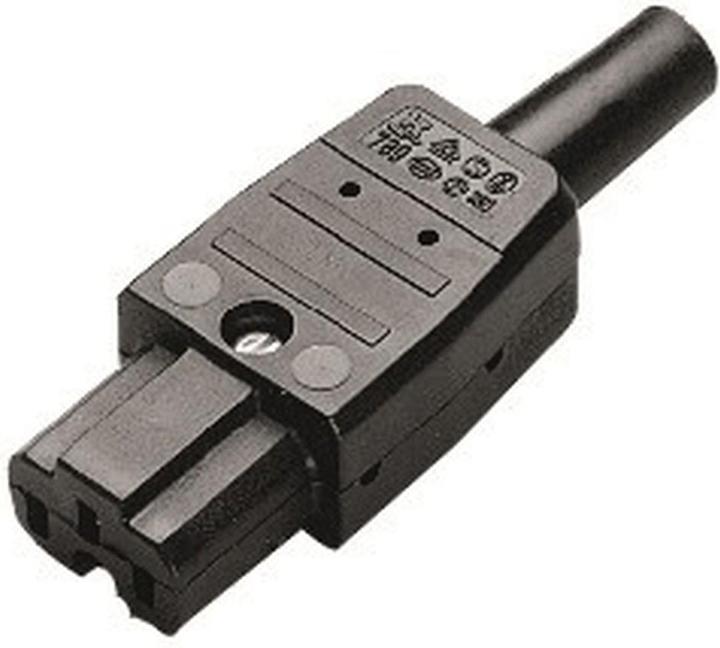

Elbro Apparatus socket outlet type C15A 10A 230VAC straight max.155°C black IP20

The Elbro C15A appliance socket is a reliable and versatile solution for electrical applications. It is designed for a rated voltage of 230 V AC and offers a maximum pin temperature of 155 °C. This socket is equipped with a protective contact and features a strain relief sleeve that enhances the durability and safety of the connection. The screw connection allows for easy and secure installation, while the design is optimized for space-saving mounting. The socket is suitable for cable types H05RR-F 3×0.75 mm² to 3×1 mm², with the recommendation to use only 3×1 mm² for lead lengths exceeding 2 m. With an operating temperature range of -5 to 40 °C and an average temperature of up to 35 °C over 24 hours, it is suitable for a variety of applications. The protection class IP20 ensures that the socket is designed for use in dry indoor environments.

• Maximum pin temperature of 155 °C
• Protective contact with strain relief sleeve
• Suitable for cable types H05RR-F 3×0.75 mm² to 3×1 mm²
• Operating temperature range of -5 to 40 °C.
