Product details

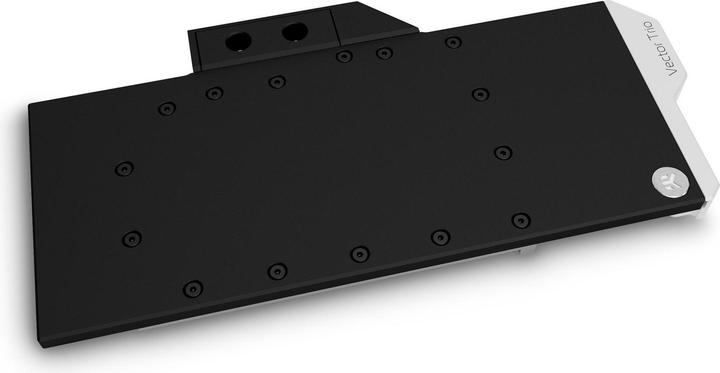

The EK-Quantum Vector Trio RTX 3080/3090 D-RGB GPU cooler has been developed based on the second generation of the Vector series and is designed for the MSI Trio and Suprim RTX 3080 and 3090 graphics cards. The Vector water block directly cools the GPU, VRAM, and VRM (voltage regulation module) as the coolant flows directly over these critical areas. The base of the block is made of nickel-plated copper, while the top is made of acetal.

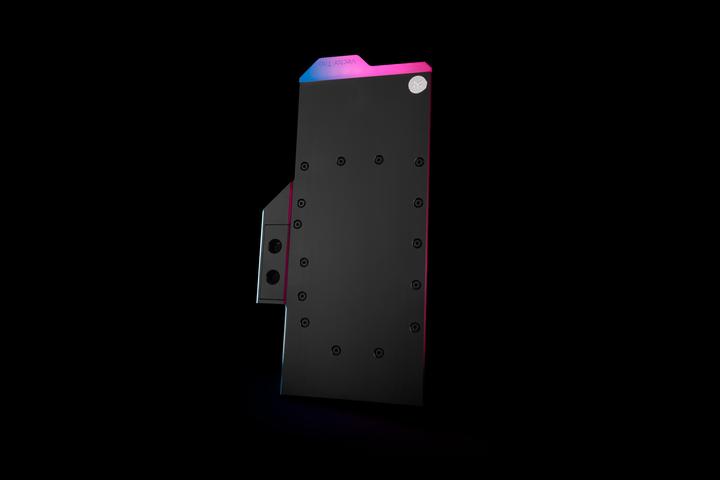

Additionally, the cooler features D-RGB lighting with a total of 9 individually addressable LEDs that give the end piece a pleasant glow. The lighting is compatible with all major RGB sync technologies from leading motherboard manufacturers, such as ASRock Polychrome Sync, ASUS Aura Sync, Gigabyte RGB Fusion, and MSI Mystic Light. Since the GPU cooler does not come with a backplate, it is recommended to order a compatible backplate as well. Such a backplate not only improves stability but also enhances cooling performance as it serves as a passive cooler.
Hardware Model | GeForce RTX 3080, GeForce RTX 3090 |
Bottom plate material | Nickel-plated copper |
Documents | |
Item number | 14693278 |
Manufacturer | EKWB |
Category | GPU water coolers |
Manufacturer no. | 3831109832752 |
Release date | 28.1.2021 |
GPU Cooler type | Backplates |
connector | 2x G1/4 |
Compatible brands | MSI |
Hardware Model | GeForce RTX 3080, GeForce RTX 3090 |
Bottom plate material | Nickel-plated copper |
Cover material | Nickel |
SLI Compatibility | No |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x EK-Quantum Vector Trio RTX 3080, 3090 D-RGB water block |
Length | 320 mm |
Width | 20.50 mm |
Height | 157 mm |
Length | 37.60 cm |
Width | 21.20 cm |
Height | 5.80 cm |
Weight | 1.83 kg |
