EKWB EK-XTOP Revo Dual D5 PWM Serial - incl. 2 pumps

6Ratings
Currently out of stock

Product details

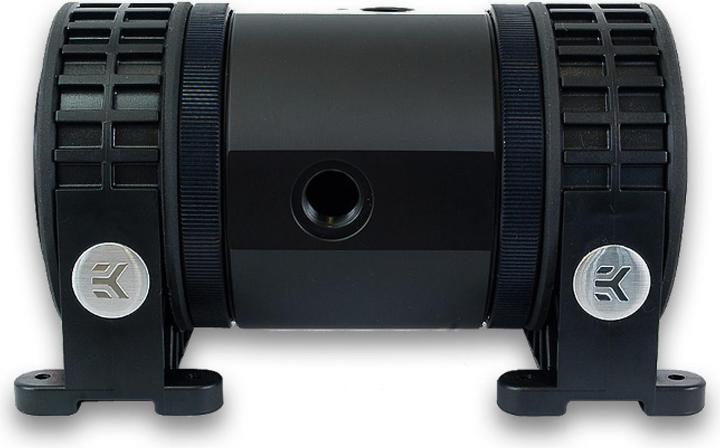

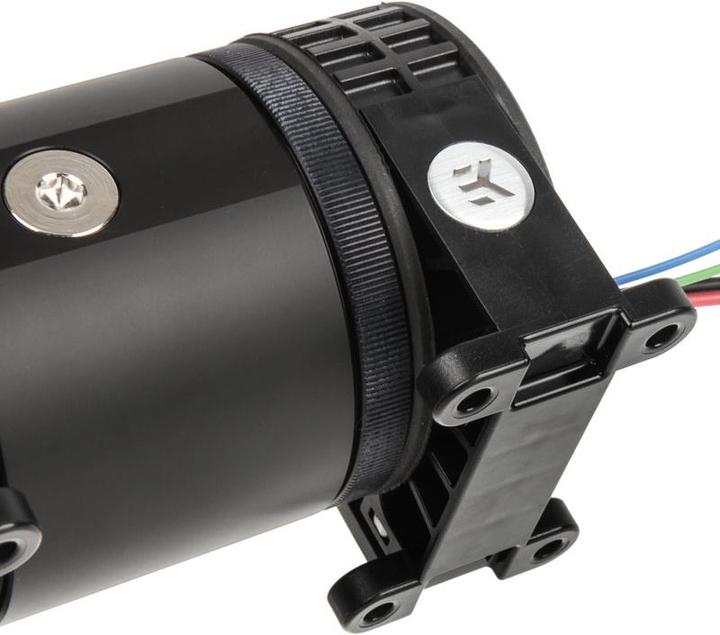

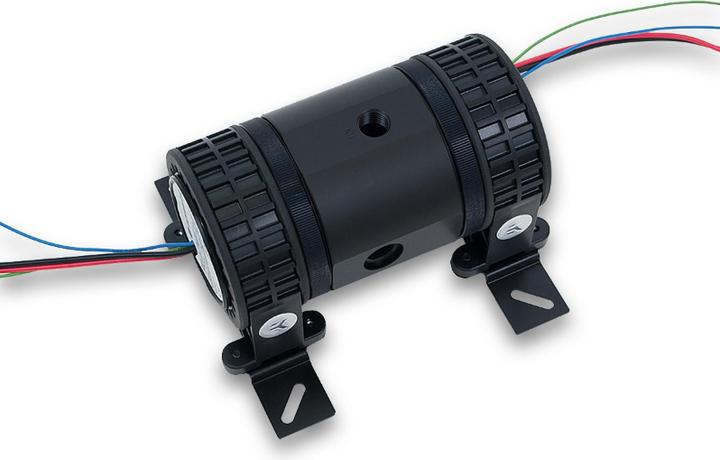

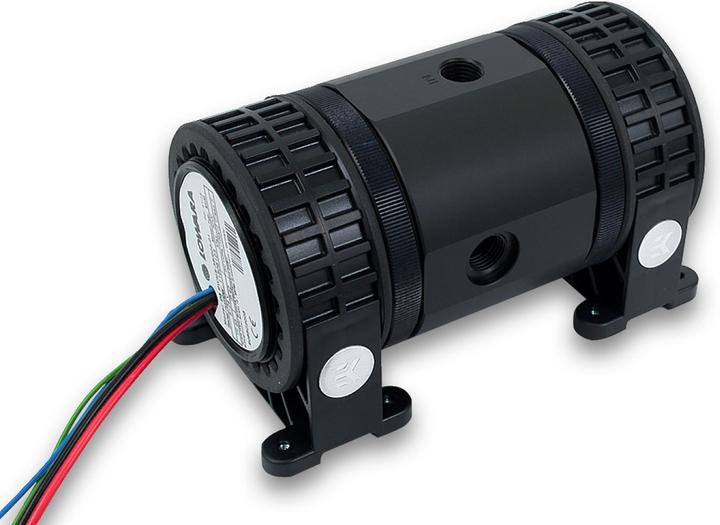

The EK-XTOP Revo Dual D5 PWM is a prefabricated round pump body made of acetal and is already equipped with two EK-D5 PWM pumps. The body in conjunction with the D5 pumps ensures safe and powerful system cooling. In the unlikely event that one pump should fail, the second pump provides sufficient power to maintain the water flow. In addition, the pump is mounted in decoupled bearings, which reduces noise caused by vibrations. Almost any Wakü port with G1/4 port can be connected to three G1/4 ports.

The built-in pumps are ideal for Wakü systems. The D5 pump is equipped with an electronic ball motor. This is held in the pump by a special ball bearing made of ultrarobust ceramic. Together, the pumps achieve a maximum flow rate of 1,500 l/h and a delivery head of 7 meters. With the EK-XTOP Revo Dual D5, very large and extensive Wakü circuits can be operated accordingly.

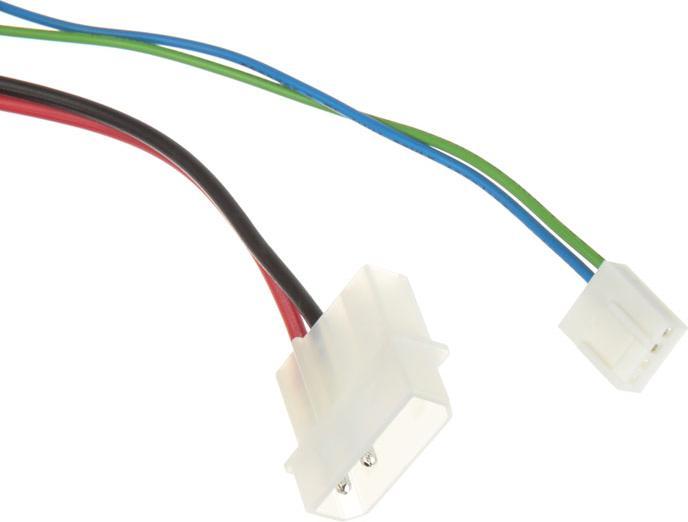

Power is supplied via 4-pin Molex. In addition, the pumps can also be connected to a PWM connection via an adapter. The PWM control of the pump enables automatic speed control. This guarantees full performance or whisper-quiet operation in standby mode when required. Mounting materials for easy installation on a 120 or 140 fan are included in the delivery.

Key specifications

Max. flow
1500 l/h
Max. delivery head
7 m
Pump Power connection
4PIN Molex, 4PIN PWM
water inlet
G1/4" female thread
water outlet
G1/4" female thread
Item number
5684675

General information

Manufacturer
EKWB
Category
Water cooling pumps
Manufacturer no.
3831109843192
Release date
29.1.2016

Water cooling pump properties

pump type
D5 Series
Max. delivery head
7 m
Max. flow
1500 l/h
Voltage
12 V
Pump Power connection
4PIN Molex, 4PIN PWM
water outlet
G1/4" female thread
water inlet
G1/4" female thread
Max. system temperature
60 °C
Exact colour description
Black
Power consumption
46 W
Material
Acetal, POM
Approved liquids
Water, water/glycol mixture
Possible control range
PWM

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery

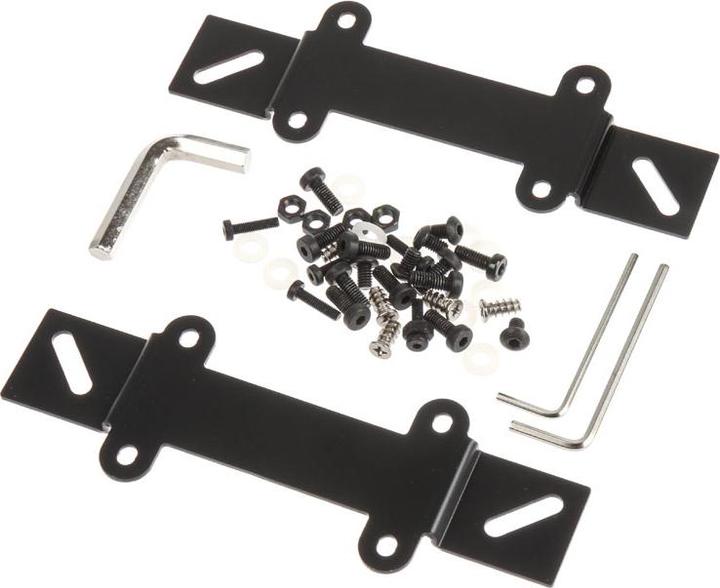

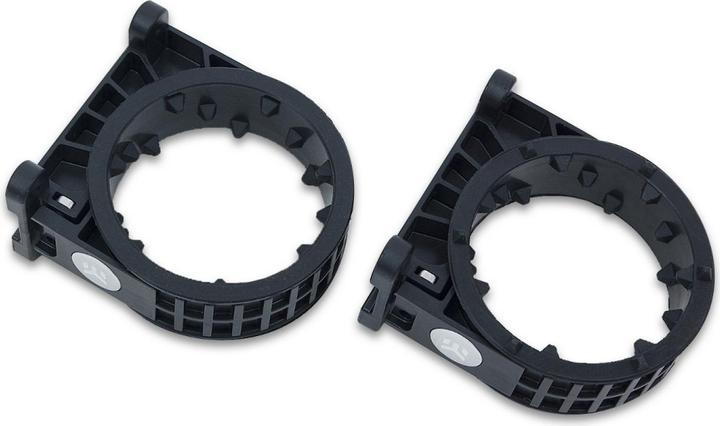

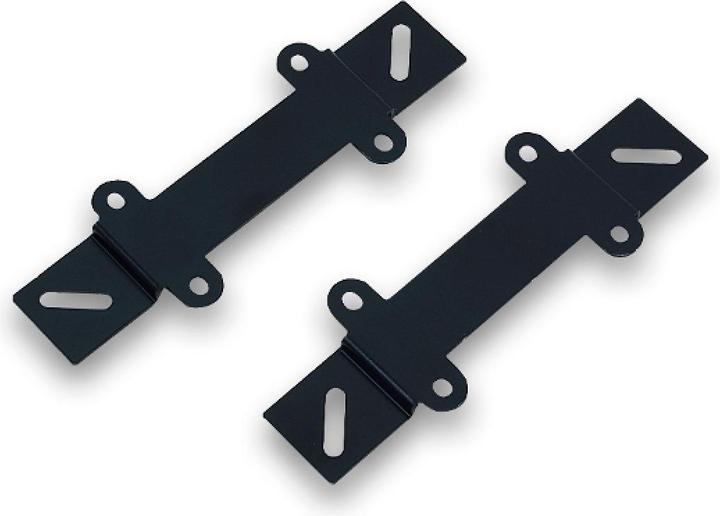

2 mounting clips with rubber insert, 2 mounting plates, 2 self-adhesive mounting hole pattern stickers, Fastening mechanism

Product dimensions

Length
78 mm
Width
143.50 mm
Height
88 mm

Package dimensions

Length
10 cm
Width
11 cm
Height
22 cm
Weight
1.28 kg
