EKWB EK-XTOP Revo D5 PWM

Ratings
Currently out of stock

Product details

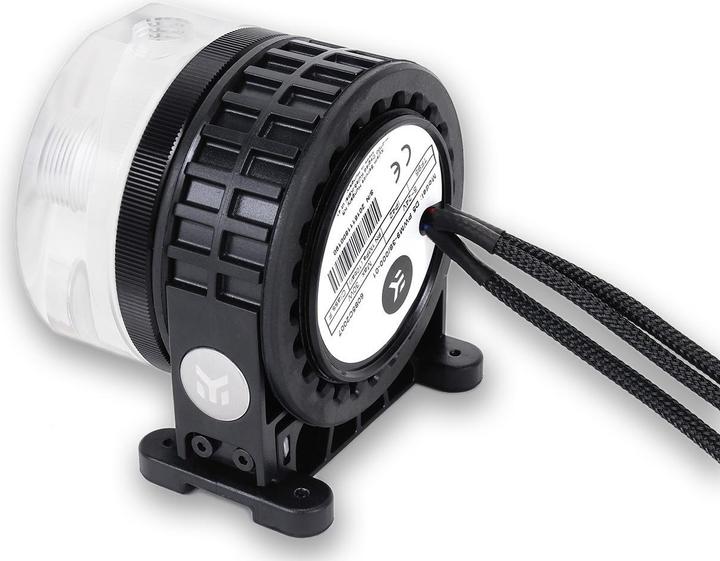

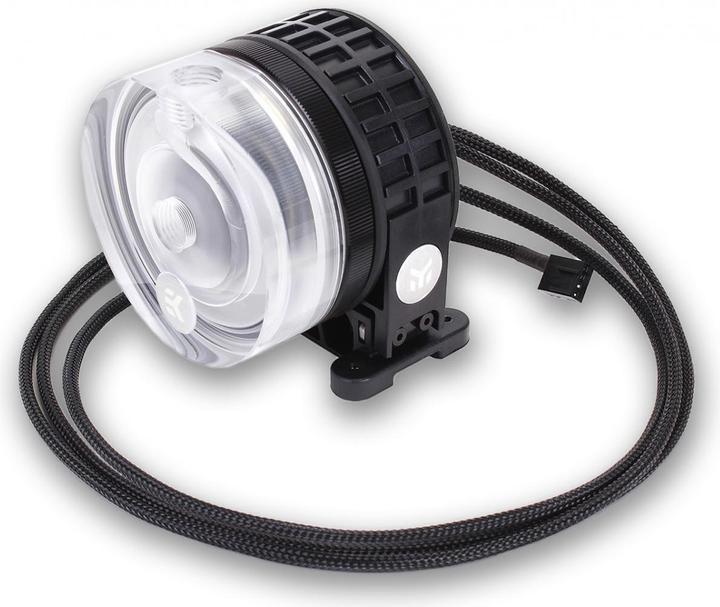

EK-XTOP Revo D5 PWM is a high-performance liquid cooling pump, built around the market-proven Xylem D5 PWM water pump and revolutionary EK-XTOP Revo D5 pump volute/body with a vibration-reducing mounting clamp. This unit offers increased hydraulic performance (up to 15%) compared to the original factory top.

This pump is ideal for PC and other electronics water cooling. The D5 pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor, the only moving part is a spherically shaped rotor, which in this pump is held in place by a bearing ball made of ultra-hard and wear-resistant ceramic. It is rated for 50,000 hours MTBF at 25°C ambient.

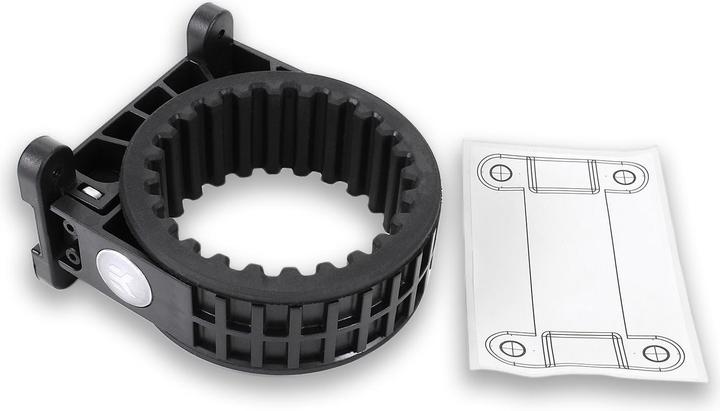

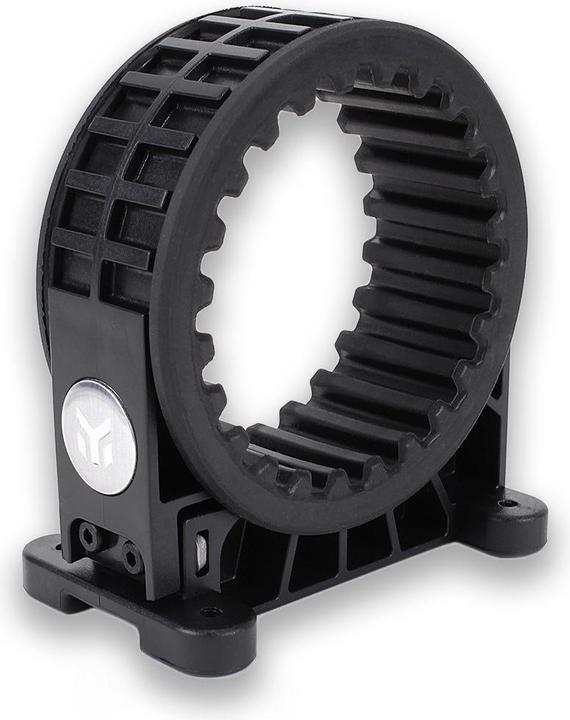

The new D5 Revo pump volute/body system features a fully rounded design, thus offering greater usability, allowing installation at any angle within 360° of rotation. A special rubber shock absorber is used to decouple the main pump body from the mounting clip for silent operation, free of vibration-induced noise. Additionally, horizontal and vertical positioning are supported for easier tube routing possibilities.

Key specifications

Max. flow
1500 l/h
Max. delivery head
3.90 m
Pump Power connection
4PIN Molex, 4PIN PWM
water inlet
G1/4" female thread
water outlet
G1/4" female thread
Item number
6350860

General information

Manufacturer
EKWB
Category
Water cooling pumps
Manufacturer no.
3831109843345
Release date
12.6.2017
External links
Manufacturer's site (de)

Water cooling pump properties

pump type
D5 Series
Max. delivery head
3.90 m
Max. flow
1500 l/h
Voltage
12 V
Pump Power connection
4PIN Molex, 4PIN PWM
water outlet
G1/4" female thread
water inlet
G1/4" female thread
Max. system temperature
60 °C
Exact colour description
Black
Power consumption
23 W
Material
Acrylic
Approved liquids
Water, water/glycol mixture

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Installation material

Package dimensions

Length
11 cm
Width
10 cm
Height
10 cm
Weight
590 g
