EKWB EK-XTOP Revo D5 PWM - incl. pump

5Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

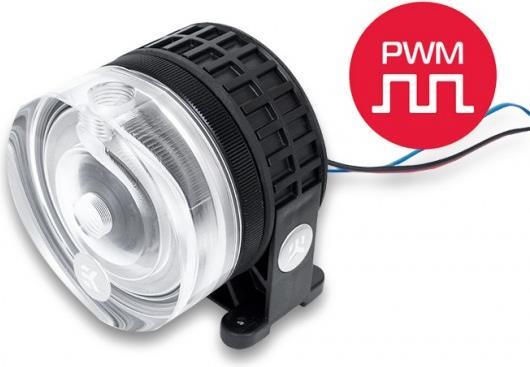

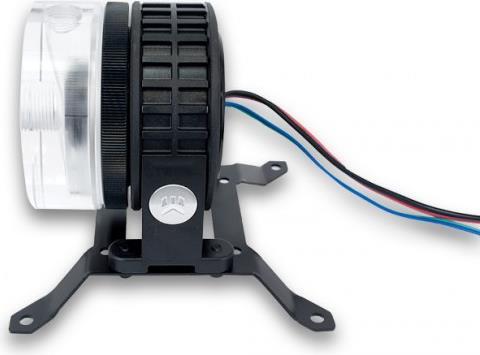

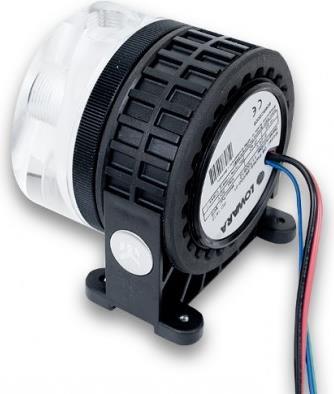

The EK-XTOP Revo D5 PWM is a pre-assembled round pump housing made of transparent acrylic and already equipped with an EK-D5-PWM pump. According to the manufacturer, the combination of the housing and the D5 pump allows for up to 15% more hydraulic performance compared to a Laing D5. Additionally, the pump is decoupled, which reduces noise from vibrations. Almost any water cooling connection with a G1/4 port can be connected to the two G1/4 ports.

The installed pump is ideal for water cooling systems. The D5 pump features an electronic ball motor, which is held in the pump by a special ball bearing made of ultra-robust ceramic. The pump achieves a maximum flow rate of 1,500 L/h and a delivery head of 3.9 m.

Power is supplied via a 4-pin Molex connector. Additionally, the pump can be connected to a PWM port via an adapter. The PWM control of the pump allows for automatic speed regulation, providing full power when needed or whisper-quiet operation in standby mode.

Key specifications

Max. flow
1500 l/h
Max. delivery head
3.90 m
Pump Power connection
4PIN Molex
water inlet
G1/4" female thread
water outlet
G1/4" female thread
Item number
5656202

General information

Manufacturer
EKWB
Category
Water cooling pumps
Manufacturer no.
3831109843048
Release date
2.12.2015

Water cooling pump properties

pump type
D5 Series
Max. delivery head
3.90 m
Max. flow
1500 l/h
Voltage
12 V
Pump Power connection
4PIN Molex
water outlet
G1/4" female thread
water inlet
G1/4" female thread
Max. system temperature
60 °C
Exact colour description
Black, Transparent
Power consumption
23 W
Material
Acrylic
Approved liquids
Water, water/glycol mixture

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
110 mm
Width
100 mm
Height
100 mm

Package dimensions

Length
11 cm
Width
10 cm
Height
10 cm
Weight
560 g
