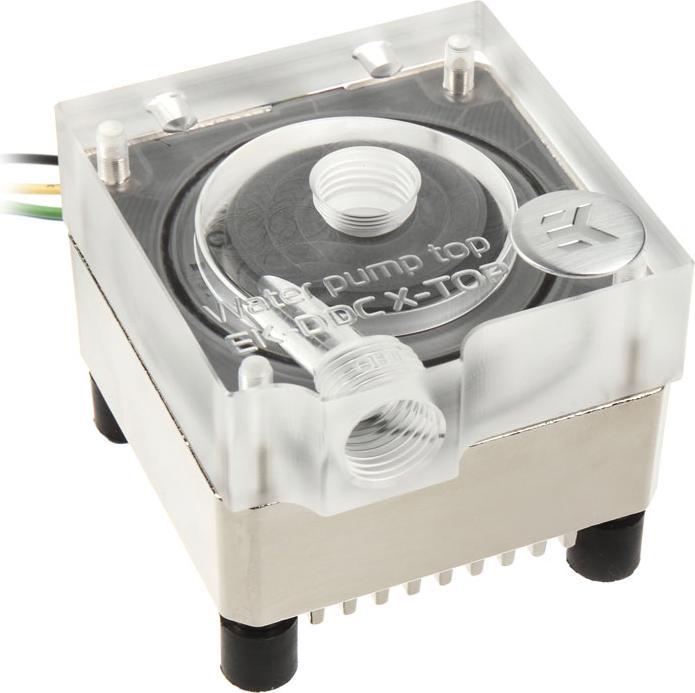

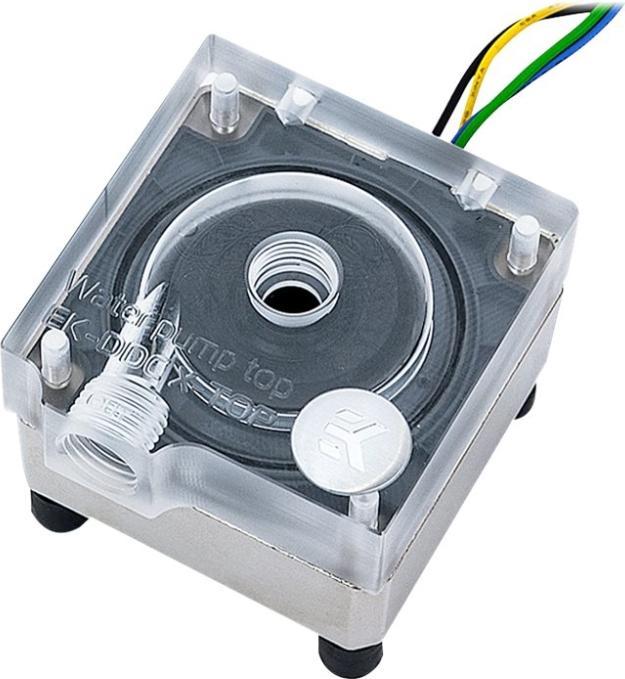

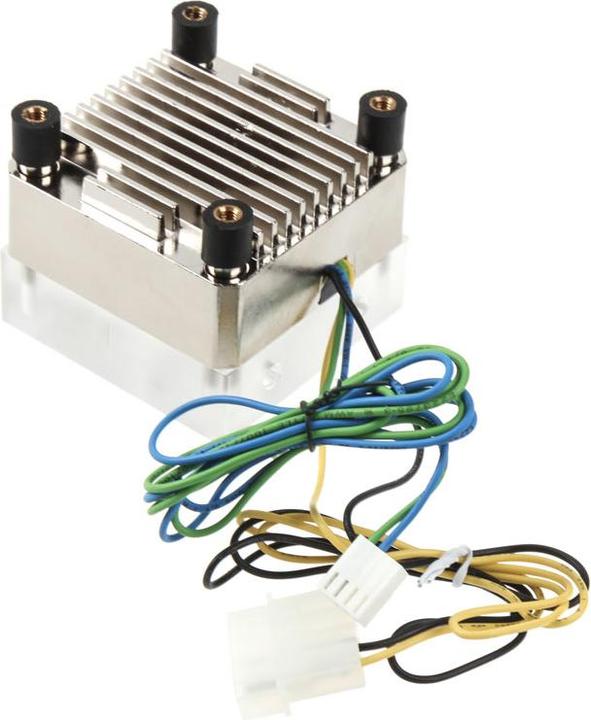

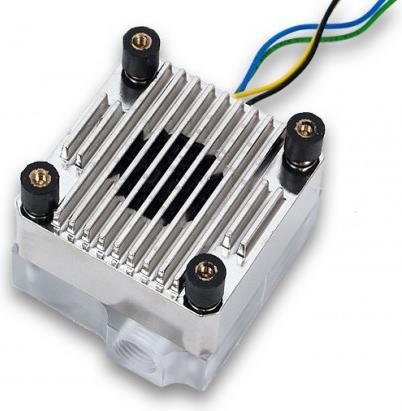

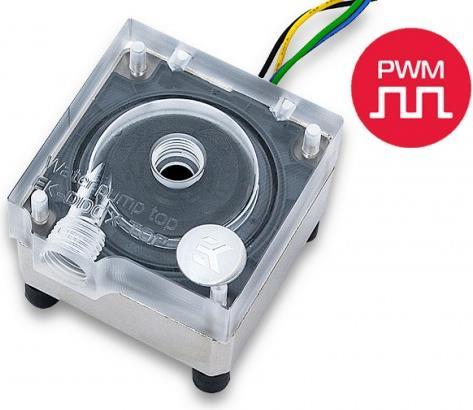

EKWB EK-XTOP DDC 3.2 PWM Elite - Plexi incl. pump

Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

The EK-XTOP DDC 3.2 PWM Elite is a high-quality water pump specifically designed for use in water cooling systems. It combines an elegant rectangular acrylic top with a powerful EK-DDC-3.2-PWM pump. This innovative design allows for up to 15% higher hydraulic performance compared to conventional pump heads. The pump is equipped with an electronic ball motor supported by a robust ceramic ball bearing, enhancing its durability and efficiency. With a maximum flow rate of 1,000 liters per hour and a head height of up to 5.2 meters, it is ideal for demanding water cooling systems. Power is supplied via a SATA connector, and the PWM control allows for automatic adjustment of the speed to ensure both high performance and quiet operation.

  • Maximum flow rate of 1,000 L/h
  • Head height of up to 5.2 m
  • PWM control for automatic speed regulation
  • Robust ceramic ball bearing for increased durability
  • Two G1/4 ports for flexible connection options.

Key specifications

Max. flow
1000 l/h
Max. delivery head
5.20 m
Pump Power connection
4PIN Molex
water inlet
G1/4" female thread
water outlet
G1/4" female thread
Item number
6068442

General information

Manufacturer
EKWB
Category
Water cooling pumps
Manufacturer no.
3831109843147
Release date
5.1.2017
External links
Manufacturer's site (de)

Water cooling pump properties

pump type
Laing DDC
Max. delivery head
5.20 m
Max. flow
1000 l/h
Voltage
12 V
Pump Power connection
4PIN Molex
water outlet
G1/4" female thread
water inlet
G1/4" female thread
Max. system temperature
60 °C
Exact colour description
Silver, Transparent
Power consumption
18 W
Material
Acrylic
Approved liquids
Water, water/glycol mixture
Possible control range
PWM

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery

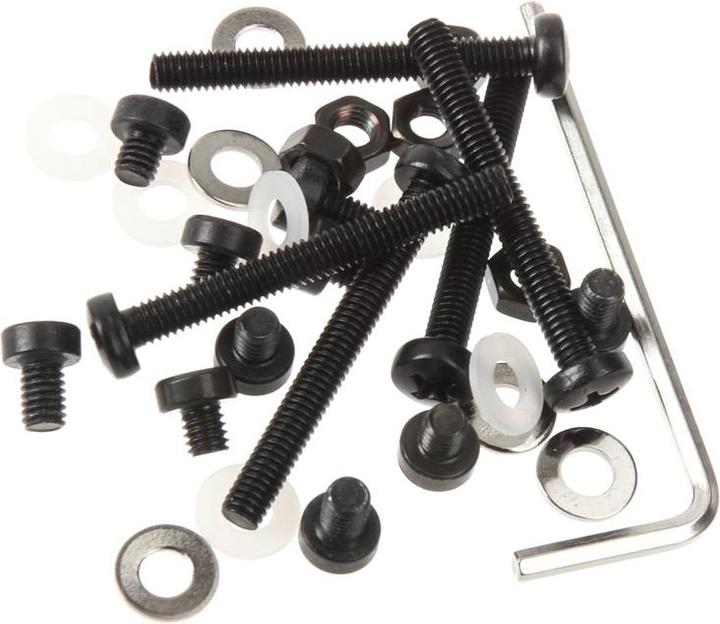

Installation material

Product dimensions

Length
67 mm
Width
62 mm
Height
100 mm
Weight
534 g

Package dimensions

Length
11 cm
Width
10.20 cm
Height
10.30 cm
Weight
560 g
