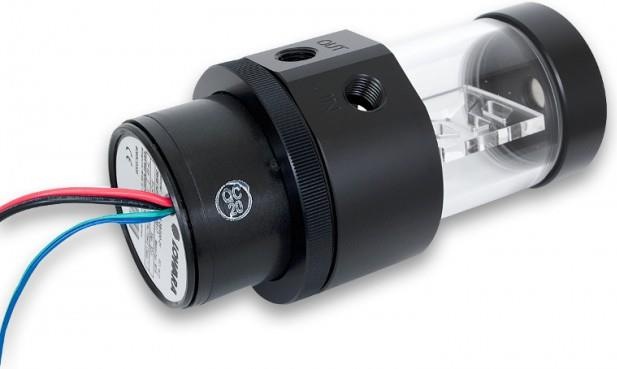

EKWB EK-XRES 100 Revo D5 PWM - incl. pump

With the EK-XRES 100 Revo D5 PWM from the latest rounded Revo series, EK Water Blocks has developed a high-quality reservoir with an integrated D5 pump. The acetal pump head is a premium alternative to the previous acrylic variants and offers excellent flow characteristics. Additionally, it is said to provide up to 15% more hydraulic performance compared to a Laing D5, according to the manufacturer. The pump is also decoupled, which reduces noise from vibrations. Two G1/4 ports allow for the connection of nearly any water cooling component with a G1/4 port.

The built-in pump is ideal for water cooling systems. The D5 pump features an electronic ball motor, which is held in place by a special ball bearing made of ultra-durable ceramic. The pump achieves a maximum flow rate of 1,500 l/h and a head height of 3.9 m.

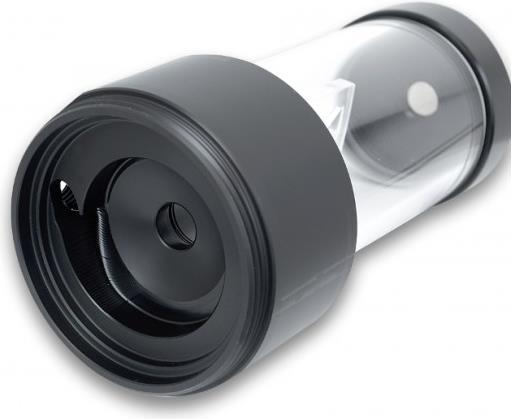

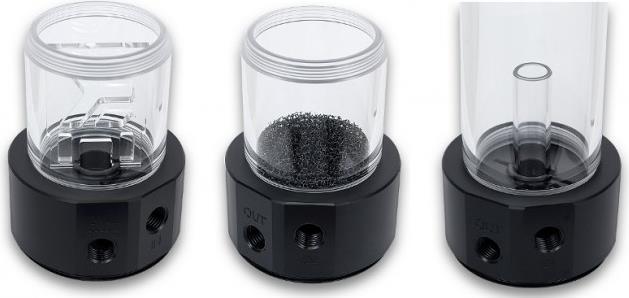

Additionally, the approximately 125 ml reservoir with a vortex killer ensures there are always sufficient reserves for water cooling. The reservoir is primarily made of Plexiglas and acetal and is designed for both horizontal and vertical orientation, making it perfect for all water cooling enthusiasts.

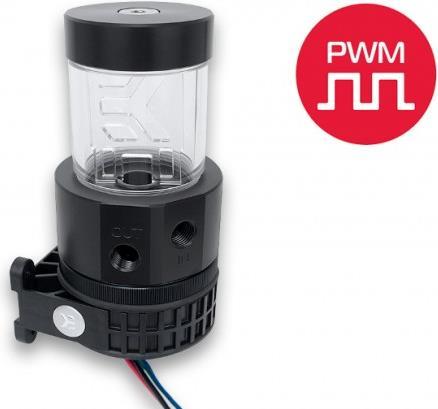

Power is supplied via a 4-pin Molex connector. Furthermore, the pump can also be connected to a PWM port using an adapter. The PWM control of the pump allows for automatic speed regulation, providing full power when needed or whisper-quiet operation in standby mode.
