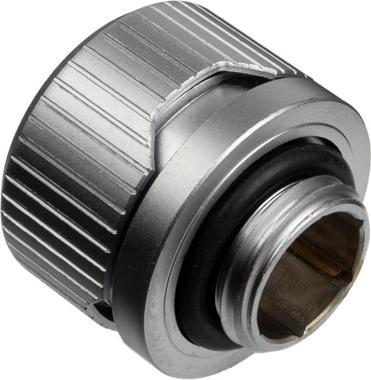

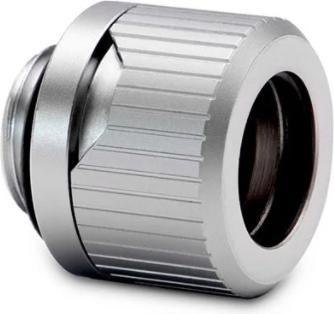

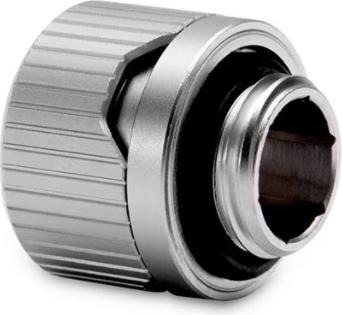

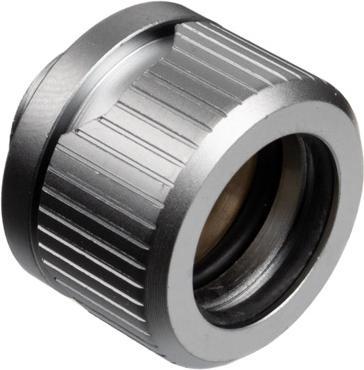

EKWB EK-Quantum Torque HTC 14 connection straight G1/4 inch male to 14mm female hardtube - Satin

The Torque series from EK Water Blocks is characterized by its clear and timeless design, free of embellishments and logo branding. The Torque series is part of the EKWB Quantum series but is also compatible with other products from EK Water Blocks.

The EK-Quantum Torque HTC 14 is a compression fitting that is mounted as an attachment on a 14 mm hard tube to connect it to a G1/4-inch port. It is compatible with all rigid tubes made of acrylic, PETG, copper, brass, or stainless steel with a 14 mm outer diameter.

The product is made of nickel-plated and satin-finished brass and features high-quality sealing rings. The compression nut, which acts as a compression ring, forces the sealing ring inside the fitting inward, where it securely clamps the inserted tube.

The compression nut has a recess under which colored rings are revealed, available separately, allowing the fitting to have its own unique look. The fitting is particularly suitable for use with EK Water Blocks' Quantum products and can be used with all other water cooling products from the company.

Technical details:

• Outer diameter: 22 mm
• Height (installed): 15 mm
• Material: Brass
• Color: Silver (Titanium, satin)
• Connections:
• 1x G1/4 inch female (4.5 mm thread length)
• 1x 14 mm outer diameter hard tube
• Compatibility: Tubes made of acrylic, PETG, copper, brass, or stainless steel.
