EKWB EK-Quantum Magnitude D-RGB AM4 Water Cooler - Nickel + Acrylic

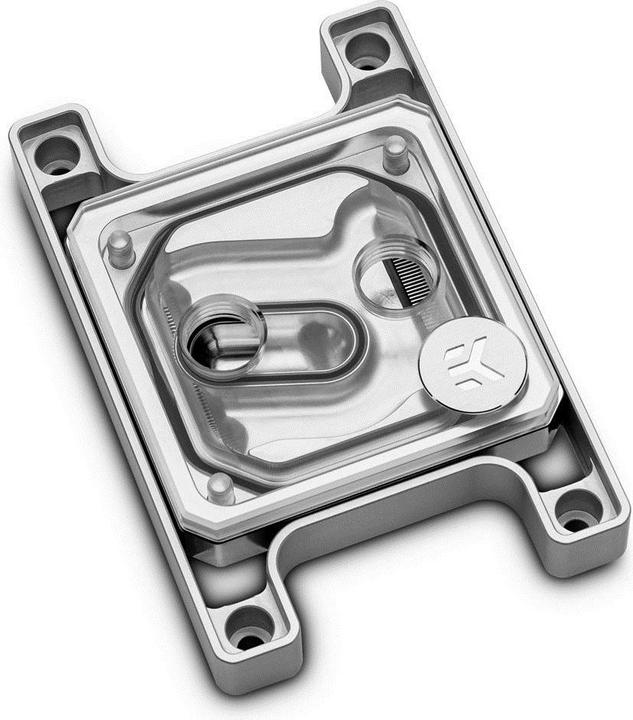

This version of the EK-Quantum Magnitude D-RGB features a lid made of transparent acrylic and a base made of nickel-plated copper, specially tailored for the AMD socket AM4. The EK-Quantum Magnitude D-RGB AM4 has a convex cooler bottom that fits perfectly on the concave IHS of AMD CPUs. A special insert distributes the water flow evenly over the processor die. The optimized cooler bottom offers a 50 percent increased cooling area compared to previous EKWB models, thanks to micro channels with a width of 0.40 mm and micro fins that are only 0.26 mm thick. In conjunction with high-purity and thermally conductive copper, this ensures excellent heat transfer.

The modular design of the EK-Quantum Magnitude D-RGB heatsinks is unique, allowing individual components to be exchanged for a perfect match with your system. The outer mounting frame, inner accent frame, lid, and base are available in various materials and colors. The special insert of the EK-Quantum Magnitude AM4 has a specific offset to optimally guide the coolant flow over the hot components of the processor, ensuring better cooling for both the chiplets and the I/O die.

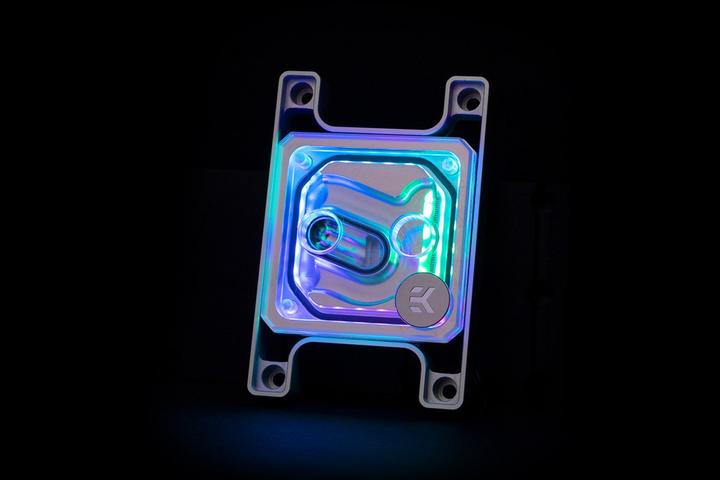

The inner accent frame is made of nickel-plated brass and houses the cooler's D-RGB lighting. The integrated RGB strip features 30 digitally addressable RGB LEDs connected via a 3-pin RGB connector. An optional flat cooler bottom is available for use with flat ground IHS heat spreaders. For particularly concave IHS, an additional jet plate is included with the Magnitude D-RGB AM4 cooler, which curves the cooler bottom by an additional 0.1 mm to improve contact with the CPU. The package includes mounting hardware and a 1-gram tube of Thermal Grizzly thermal compound.
