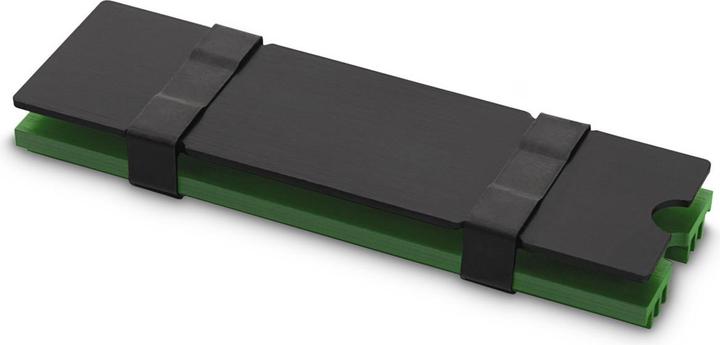

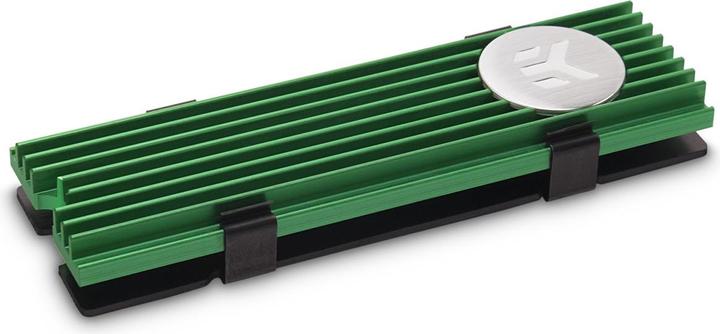

EKWB EK-M.2 NVMe Heatsink - green

The EK-M.2 NVMe heatsink is a passive heatsink designed for M.2 NVMe Next Generation Form Factor SSDs. It provides both aesthetic and functional benefits for many PC owners. M.2 NVMe SSDs are known to overheat easily, leading to thermal throttling and a loss of performance. This heatsink offers a temperature improvement of 7-30°C for SSDs, or even more with sufficient airflow.

The unique design of the heatsink ensures easy installation; it is low profile, reusable, and aesthetically unobtrusive. Simple clips make installation straightforward, allowing for easy reuse if the SSD is upgraded. The ribbed design not only serves as a sleek cover but also functions as an effective passive cooler. Its simple design ensures a modern look that can easily blend with any user’s aesthetic preferences. The compact design enhances compatibility, ensuring it does not interfere with other components. EK Water Blocks offers the new EK-M.2 NVMe heatsink in black and nickel variants.

The EK-M.2 NVMe heatsink is compatible with all single-sided type 2280 M.2 NVMe SSDs (22mm wide, 80mm long). Due to its construction of a front and backplate, compatibility is limited to M.2 (NGFF) connectors of 4.2mm height.
