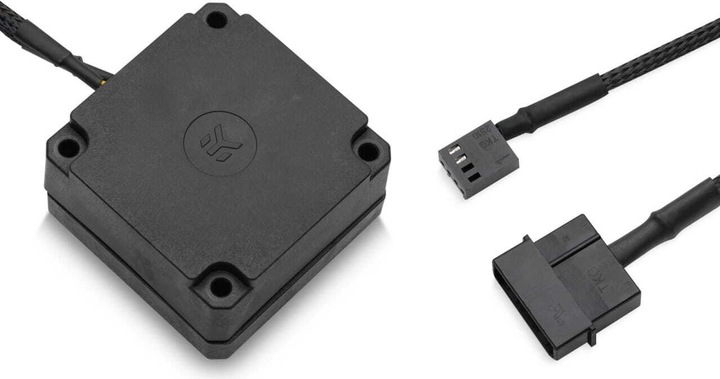

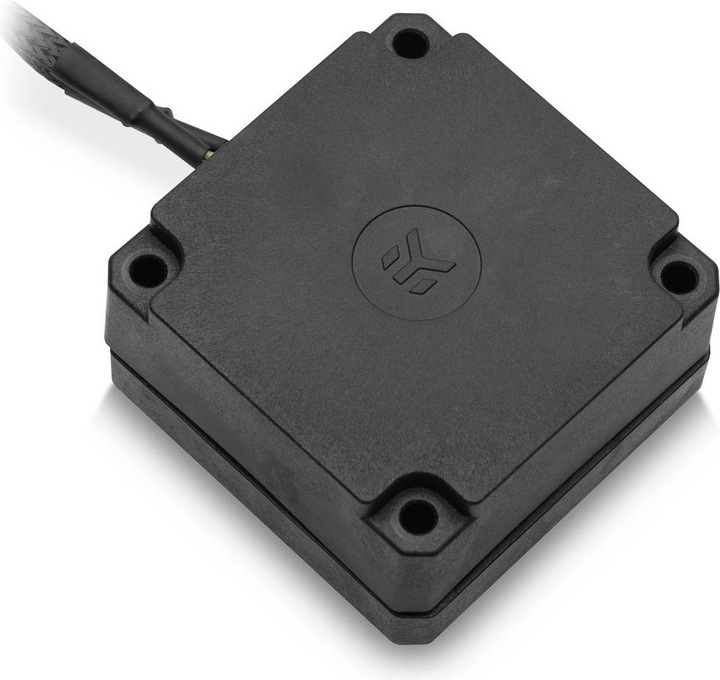

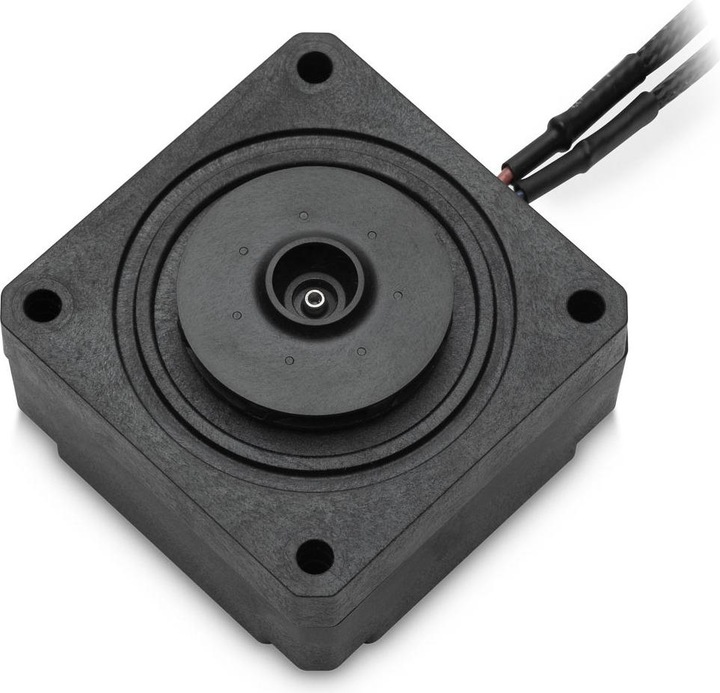

EKWB EK-Loop VTX PWM motor

The EK Water Blocks EK-Loop VTX PWM Motor is a high-performance water pump specifically designed for custom loop water cooling systems. It allows for precise control of the pump speed via PWM (Pulse Width Modulation), enabling adjustments to meet the specific requirements of the cooling circuit. This pump is compatible with all DDC mounts and offers an impressive combination of pressure build-up and flow rate, making it ideal for compact cases. With a maximum pressure of up to 5.3 meters and a flow rate of 1100 L/h, it is capable of efficiently supplying even demanding cooling configurations. The use of an optional convection heat sink is possible but not mandatory, providing additional flexibility in installation. The pump is approved for operation with water and water/glycol mixtures and can function within a temperature range of up to 60 degrees Celsius.

• PWM-controlled speed regulation for optimal adjustment
• Compatible with all DDC mounts for versatile applications
• Maximum pressure of 5.3 meters for effective cooling
• Flow rate of 1100 L/h for sufficient coolant flow
• Robust construction with high-quality materials such as copper coils and stainless steel shaft.
