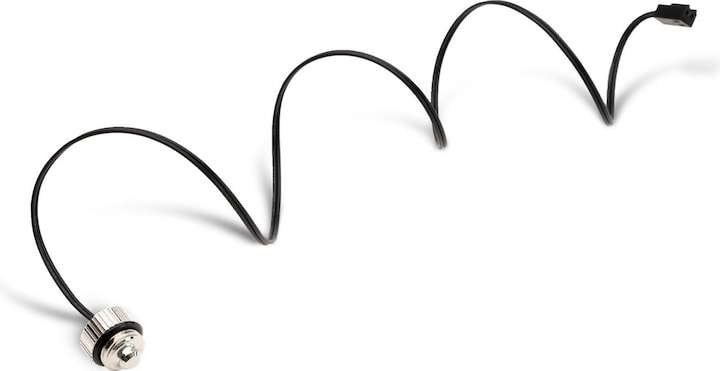

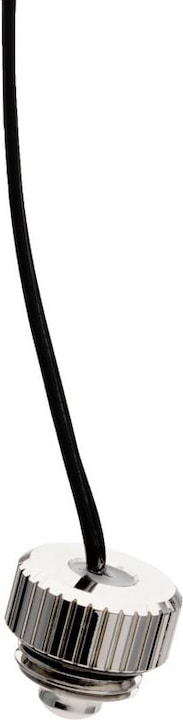

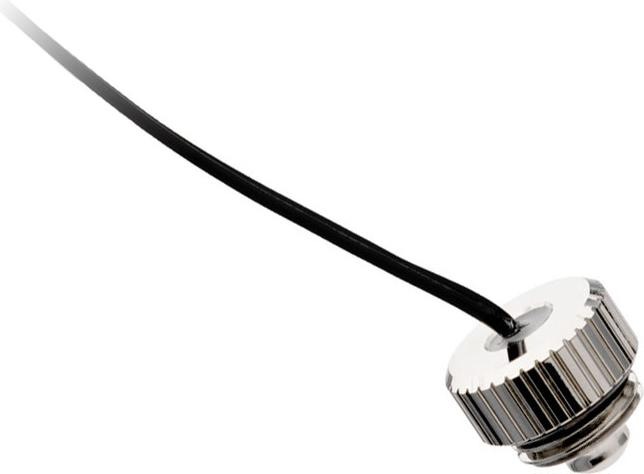

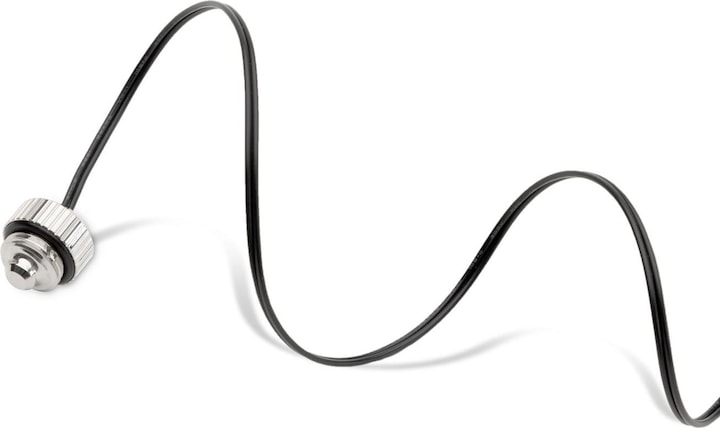

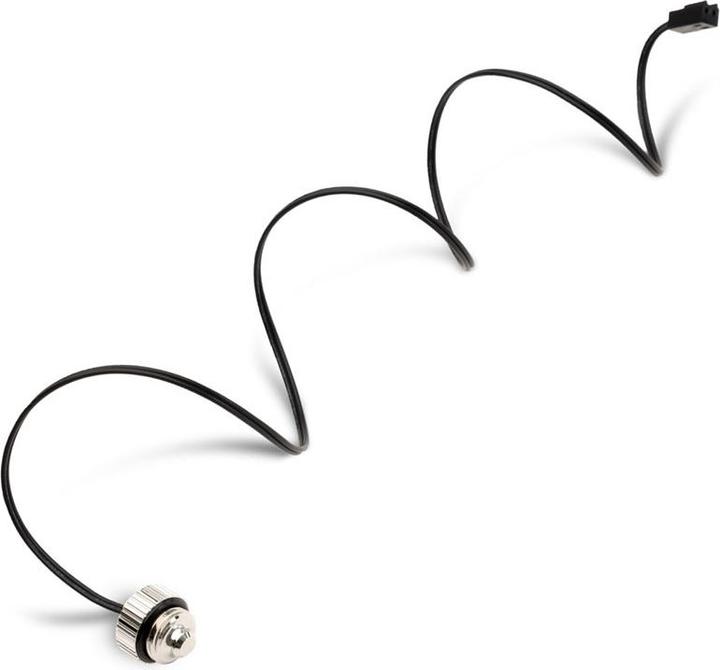

EKWB EK-Loop Connect temperature sensor, G1/4 inch - nickel

The measurement of water temperature serves two functions in a custom water cooling system: First, it is the best indicator of cooling performance, making it suitable for precise control. Second, some control devices allow for temperature-dependent regulation of the pump and connected fans.

To this end, EKWB offers this practical EK-Loop Connect temperature sensor, which simply screws into a G1/4-inch fitting and seals it like a plug. It can be used, for example, on the radiator, reservoir, or a T-piece.

The silver-colored fitting of the temperature sensor is fully encapsulated and galvanized, eliminating any issues with corrosion. The connection cable with a 2-pin connector is 500 mm long. EKWB adheres to the common standard, ensuring compatibility with many devices available on the market.

Technical details:

• Diameter: 16.5 mm
• Height after installation: 8 mm
• Material: nickel-plated brass (fitting), EPDM 50 (seal ring)
• Connection: 1x G1/4 inch external thread, 1x 2-pin
• Temperature sensor: NTC, 10 KΩ at 25 °C
• Temperature measurement range: 0 °C to 90 °C
• Cable length: 500 mm.
