Product details

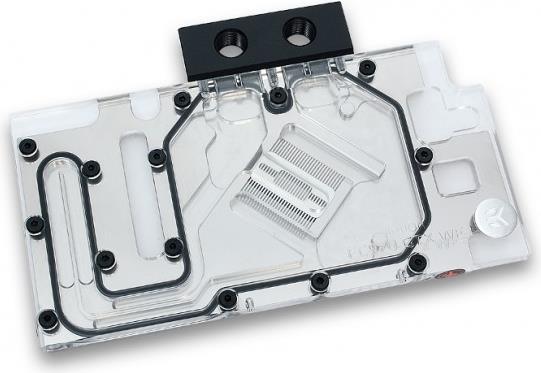

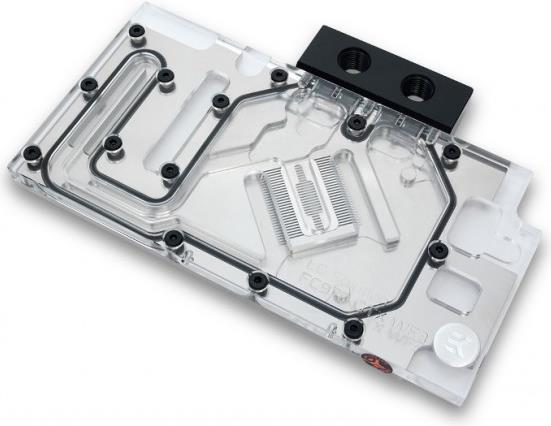

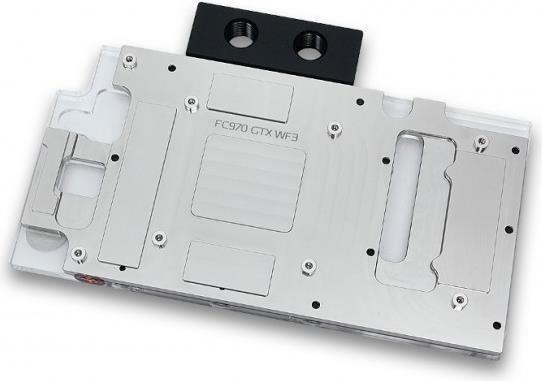

This is a full-block design that covers all relevant heat sources of the graphics card, effectively cooling the GPU, memory, and voltage regulators. It utilizes electrolytic copper and an optimized channel structure to transfer heat efficiently. For better protection and a unique appearance, the copper in this version is coated with a silver nickel layer.

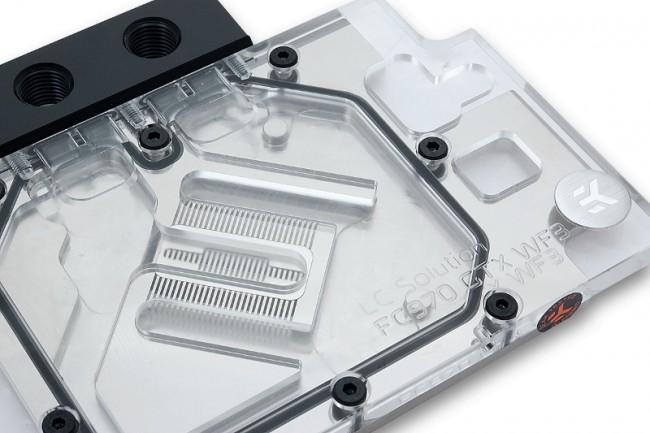

The cover is made of transparent acrylic glass and includes two 3-mm holes for optional LEDs. The connection terminal features four holes (1/4-inch thread). Due to the flat design of the cooler, connecting multiple graphics cards in an SLI configuration, for example using the EK-FC terminal, is also possible (although it is not compatible with EK-FC Bridge or EK-FC Link).

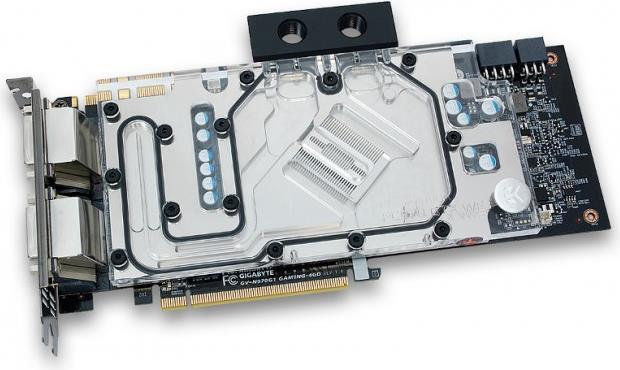

Notes: Connections needed for integration into the cooling circuit are not included. However, 1 g of thermal paste and thermal pads are already included to ensure contact between the cooler and the graphics card. It is important to note that the cooler is only suitable for Gigabyte graphics cards of the GeForce GTX 970 Gaming G1 and GTX 970 WindForce 3X custom design with "WindForce 3X" cooler! The original cooler must be removed before installation, which voids the manufacturer's warranty!.
