EKWB EK-BAY RES Dual DDC 3.2 PWM Serial - incl. pump

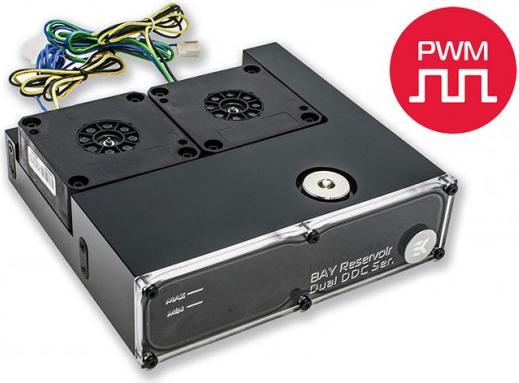

The EK-BAY RES Dual DDC 3.2 PWM Serial is a water cooling combo consisting of two EK-DDC 3.2 PWM water cooling pumps, integrated by EK Water Blocks into a custom alternative housing along with a reservoir.

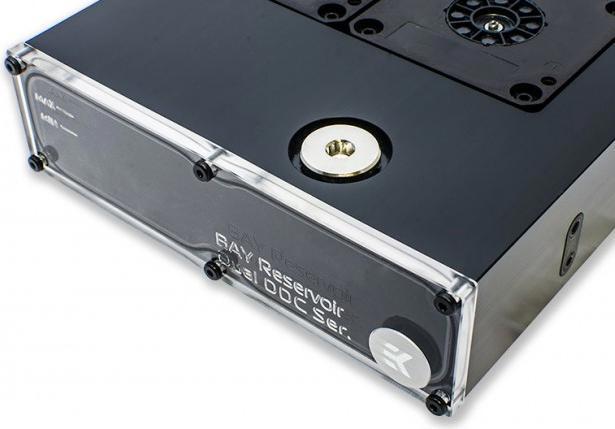

The outer surface of the EK-BAY RES Dual DDC 3.2 PWM Serial is primarily made of POM/Acetal. The acrylic glass mounted at the front of the combo allows for direct visibility of the coolant level and can create a lighting effect with the appropriate coolant. This is particularly advantageous as the combo can be installed in an external 5.25-inch slot.

With the two built-in water pumps, the EK-BAY RES Dual DDC 3.2 PWM Serial achieves double the flow rate according to the manufacturer. However, the pumps are regulated via PWM control from the motherboard, ensuring that only the necessary power (and thus noise) is produced.

Additionally, there is the advantage that even one of the pumps can still maintain a certain flow rate if the other pump fails. This allows the water cooling system to be preserved in an emergency, preventing damage to the hardware.

The EK-BAY RES Dual DDC 3.2 PWM Serial features two G1/4 ports, allowing for the installation of almost any G1/4 fitting. EK recommends using the Compression Fittings from the EK-CSQ series. There is also a G3/8 port on the top, which is used for filling the reservoir.

When mounted in a 5.25-inch slot, the combo is dampened by rubber. This ensures decoupled operation from the case with reduced vibration transfer.
