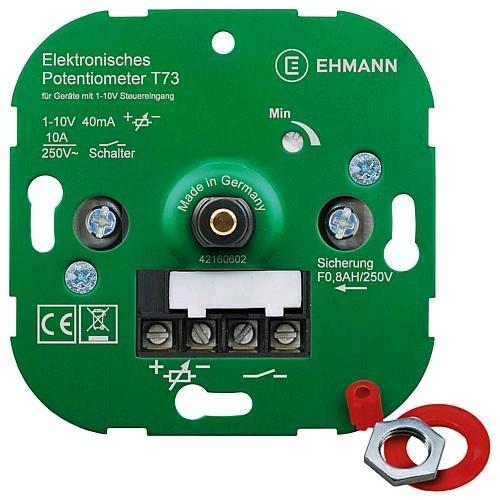

Ehmann T73 Electronic potentiometer
Only 2 pieces in stock at supplier
Product details
Electronic potentiometer for dimming luminaires with electronic ballasts or devices with a control voltage of 1-10V. It has a maximum control current of 40mA and features no stand-by consumption due to a real on/off switch, with soft latching. The metal shaft has a diameter of 4mm, and it includes a plug-in adapter for extension to a shaft diameter of 6mm and a screw connection for 1-2.5mm². It is designed for mounting in commercially available flush-mounted device boxes, with radio interference suppression. This potentiometer can be integrated into many switch ranges, allowing for basic brightness adjustment and includes a fine-wire fuse rated at F0.8A/250V.
Technical data:
EAN: 4012096730002
Product group: Other switch ranges
Manufacturer: EHMANN
Supplier article number: 7300x0000
Version: Pressure-off
Power: 230V/10A.
Light switch + socket Type | Dimmer |
Mounting type | Flush-mounted |
Item number | 33252288 |
Manufacturer | Ehmann |
Category | Light switches + Plug sockets |
Manufacturer no. | 101435 |
Release date | 17.5.2023 |
Colour | Green |
Material group | Metal |
Material | Metal shaft |
Light switch + socket Type | Dimmer |
Mounting type | Flush-mounted |
Mounting type | Screw fastening |
Application range | Indoor |
Nominal voltage | 230 V |
Area of use | Inside |
connector type | Screw connection |
Control type | Rotary controls |
CO₂ emissions | 7.1 kg |
Climate contribution | CHF 0.16 |
Weight | 0.07 kg |
Length | 8 cm |
Width | 8 cm |
Height | 6 cm |
Weight | 75 g |
