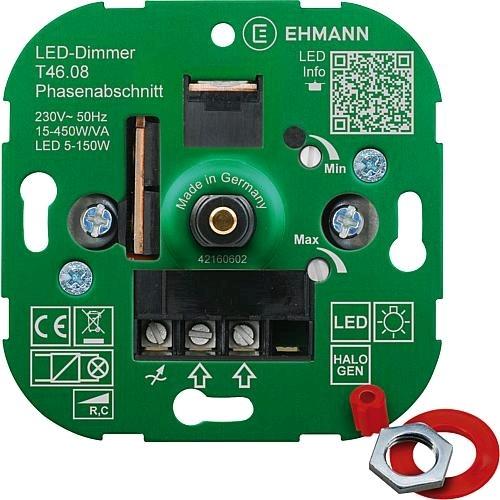

Ehmann T4608 UP Dimmer for LED

Electronic dimmer insert

Transistor-controlled dimmer without coil for dimmable LED lamps, absolutely noiseless, no stand-by consumption due to real on/off switch, active current limiting, electronic short-circuit, overload and self-resetting overtemperature protection. Dimming range adjustment by potentiometer for minimum and maximum brightness, with soft ratchet, metal shaft diameter 4mm, plug-in adapter for extension to shaft diameter 6mm and screw connection 1-2.5mm², for mounting in commercially available flush-mounted device boxes according to DIN 49073, radio interference suppression, can be integrated into many switch ranges.

For dimmable LED lamps 5-150W, incandescent, HV and LV halogen lamps with electronic transformer 15-450W/VA.

Technical data

EAN: 4012096006268

Product group: Other switch ranges

Manufacturer: EHMANN

Supplier article number: 4600x0800

Version: Pressure change

Power: 5-450W/VA.
