EFB Elektronik Network cable
S/FTP, CAT6, 3 m10 items in stock at supplier
Shield
Colour
Length
- 0.50 mCHF7.70
- 1 mCHF12.70
- 1.50 mCHF13.–
- 3 mCHF12.70
- 5 mCHF17.70
- 7.50 mCHF21.–
- 20 mCHF39.67
- 50 mCHF61.90
Product details

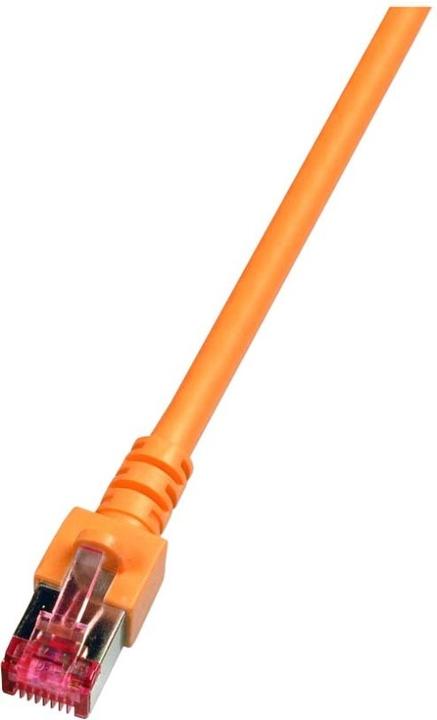

RJ45 Patch Cable Cat.6 S/FTP LSZH
The Cat.6 patch cable meets the requirements for 5 Gbit Ethernet and features gold-plated contacts.
Technical Product Features:
- Cat.6 S/FTP cable with AWG 27/7
- Jacket material made of halogen-free LSZH
- Fire protection: flame-retardant, halogen-free, low smoke
- Connector: RJ45 to RJ45 with latch protection
- Gold-plated contacts
The jacket of the shielded patch cable is made from halogen-free LSZH material and has a length print on the boot. Additionally, the cable offers power supply options through PoE according to IEEE802.3af, PoE+ according to IEEE802.3at, and 4PPoE according to IEEE802.3bt.
The wiring of the RJ45 connectors follows TIA/EIA 568B and is 1:1. The cable is suitable for a temperature range of 0 to 60 °C.
The network cable features copper conductor material and is ideally suited for use in structured building cabling, industrial Ethernet, and data centers. A frequency range of 250 MHz is achieved.
