EFB Elektronik Network cable
S/FTP, CAT6, 0.75 mMore than 10 items in stock at third-party supplier
Length
- 0.15 mCHF13.90
- 0.50 mCHF9.50
- 0.75 mCHF29.14
- 2 mCHF11.90
- 3 mCHF10.70
- 5 mCHF15.–
- 10 mCHF22.90
- 15 mCHF25.–
- 25 mCHF29.90
- 50 mCHF38.–
Product details

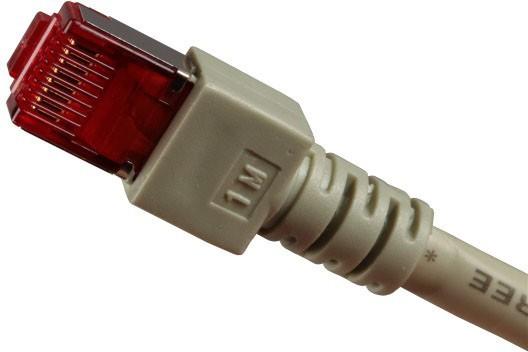

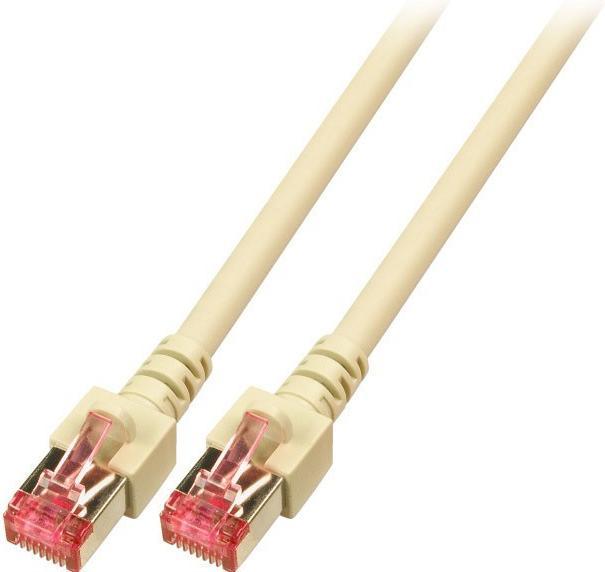

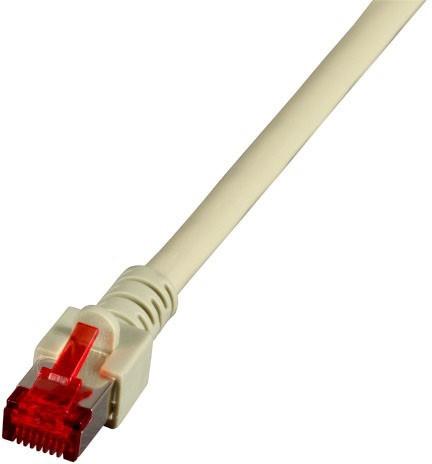

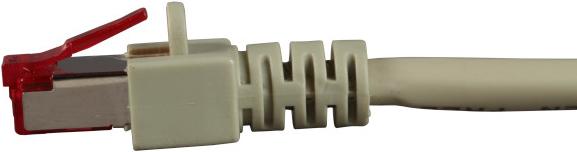

RJ45 Patch Cable Cat.6 S/FTP LSZH
The Cat.6 patch cable features gold-plated contacts and supports a transmission standard of 5 Gbit Ethernet.
Technical Product Features:
- Cat.6 S/FTP cable with AWG 27/7
- Jacket material made of halogen-free LSZH
- Fire protection: flame-retardant, halogen-free, low smoke
- Connector: RJ45 to RJ45 with latch protection
- Equipped with gold-plated contacts
The jacket of the shielded patch cable is made from halogen-free LSZH material and has a length print on the boot. Additionally, the cable offers power supply capabilities through PoE according to IEEE 802.3af, PoE+ according to IEEE 802.3at, and 4PPoE according to IEEE 802.3bt.
The pinout of the RJ45 connectors is 1:1 and follows TIA/EIA 568B standards. Suitable for a temperature range of 0 to 60 °C.
The Ethernet cable features copper conductor material and is ideally suited for applications in structured building cabling, Industrial Ethernet, and data centers. It supports a frequency range of up to 250 MHz.
