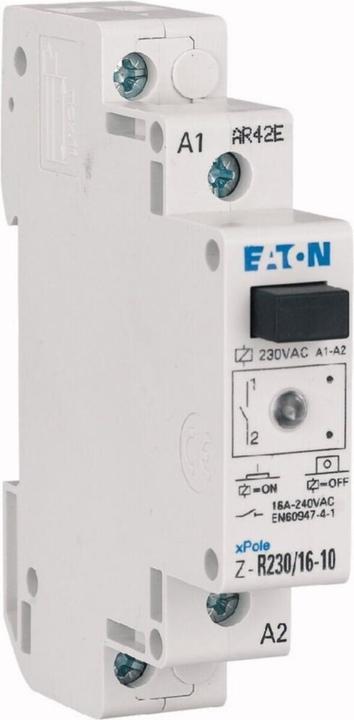

Eaton Z-R230/16-10 Industrial relay Rated voltage 230 V 240 V Switching current max. 16 A 1

Ratings
BrandMore from Eaton
Currently out of stock

Product details

Function & Features
The new Z-R 16A installation relays utilize an innovative printed relay platform and are suitable for switching single-phase consumers up to 16A. They feature manual operation for testing purposes and can be used for various switching and control applications. The innovative printed relay platform offers a compact design and is characterized by a buzz-free operation. It complies with EN 61095 and provides high flexibility through various contact configurations. The devices are designed for quick mounting on DIN rails and offer easy connections through generously sized terminals.

Application Area
The Z-R 16A installation relays provide universal solutions for control and switching tasks in building technology as well as in home installations. They are particularly suitable for switching lighting, electric heating, ventilation and air conditioning systems, fans, and heat pumps. Due to their buzz-free operation, the Z-R 16A series is especially well-suited for use in hotels, hospitals, and offices.

Key specifications

input voltage
230 V
Scope of delivery
240V AC, Control voltage 230V AC, fulfils the requirements of IEC/EN 60947-4-1, Function: 1 S, Installation relay with manual override, Mounting on top-hat rail., Mounting width 1 TE, Rated operating current 16 A, Standard front dimension 45mm
Output voltage
230 V
Output current type
AC
Electric current output
16 A
Relay type
Installation relay
Item number
15779762

General information

Manufacturer
Eaton
Category
Relays
Manufacturer no.
ICS-R16A230B100
Release date
2.5.2021
External links
Manufacturer's site (de)

Relay properties

Relay type
Installation relay
input voltage
230 V
Output voltage
230 V
Electric current output
16 A
Output current type
AC
Manufacturer Type
16-10, Z-R230

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
240V AC, Control voltage 230V AC, fulfils the requirements of IEC/EN 60947-4-1, Function: 1 S, Installation relay with manual override, Mounting on top-hat rail., Mounting width 1 TE, Rated operating current 16 A, Standard front dimension 45mm

Product dimensions

Length
100 mm
Width
40 mm
Height
60 mm
Weight
76 g

Package dimensions

Length
9.20 cm
Width
7.70 cm
Height
2 cm
Weight
79 g
