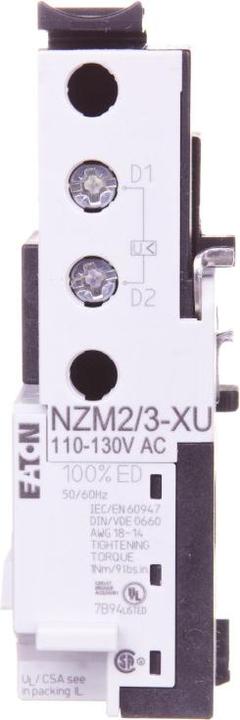

Eaton Undervoltage release, 110-130VAC 259497

Eaton undervoltage release NZM2/3-XU110-130AC

Manufacturer: Eaton
Designation: Undervoltage release for NZM2/3
Type: NZM2/3-XU110-130AC
Rated control supply voltage Us at AC 50 Hz: 110-130 V
Rated control supply voltage Us at AC 60 Hz: 110-130 V
Rated control supply voltage Us at DC: 0 V
Type of voltage for actuation: AC
Type of electrical connection: Screw connection
Delayed: No
Suitable for circuit-breakers: No
Suitable for load switches: Yes
Suitable for motor-protective circuit-breakers: No
Suitable for overload relays: No

Eaton undervoltage release NZM2/3-XU110-130AC: further details
Optional accessories for the NZM circuit-breaker range offer a comprehensive portfolio of application possibilities for worldwide use. Mounting is flexible and simple thanks to modular function groups.

Notes:
Instantaneous opening of circuit-breaker NZM or switch-disconnector N when the control voltage drops below 35-70% Us. Can be used for emergency off devices in conjunction with emergency off pushbuttons. When the undervoltage release is de-energised, contact with the main switch contacts is safely prevented during closing attempts. Undervoltage release cannot be installed at the same time as leading auxiliary contact NZM..-XHIV.. or shunt opening release NZM..-XA...

Suitable for: NZM2(-4), N(S)2(-4), NZM3(-4), N(S)3(-4)
EAN: 4015082594978.
