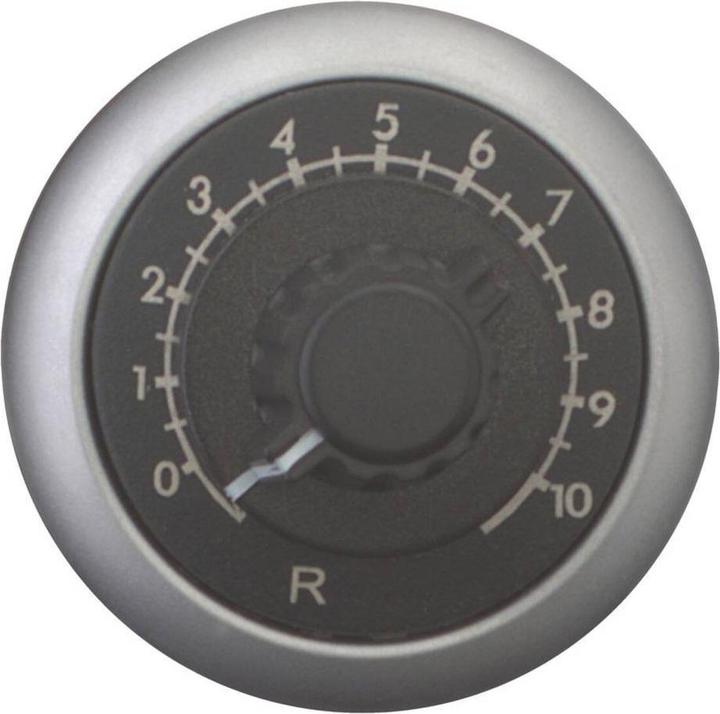

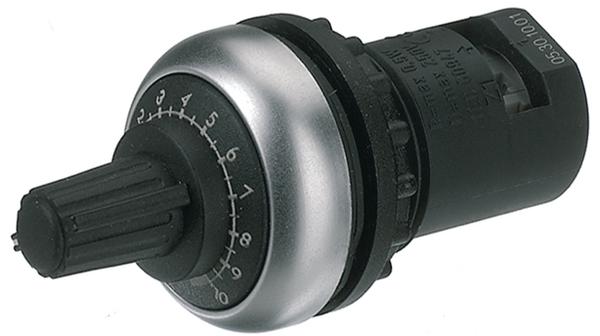

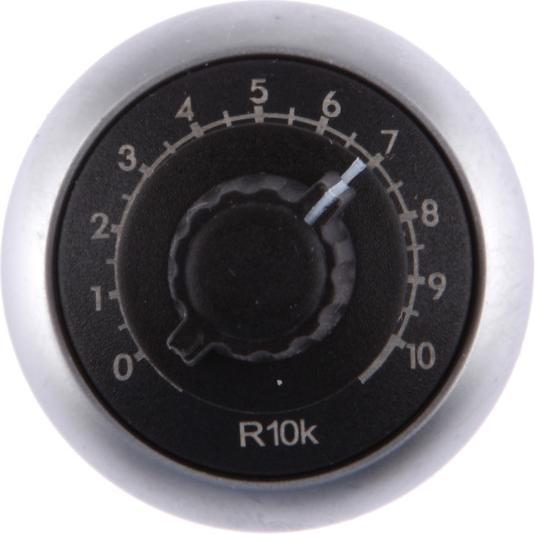

The Eaton Potentiometer M22-R10K is a high-quality rotary potentiometer with a resistance of 10 kΩ and a rated power of 0.5 W. It is suitable for use in various applications and offers a linear resistance curve with an accuracy of ± 10%. The device features three separate screw terminals that allow for easy installation and connection. With a mounting diameter of 22.5 mm and a classic design, it is both functional and aesthetically pleasing. The IP66 protection rating ensures that the potentiometer is protected against dust and water, making it ideal for use in demanding environments. The temperature range is from -25 °C to +70 °C, allowing for versatile applications in different climatic conditions. The titanium front ring adds extra robustness and durability to the potentiometer.
Nominal power | 0.50 W |
Items per sales unit | 1 x |
permissiveness | 10 ± % |
Item number | 9730267 |
Resistor type | Potentiometers |
Resistor | 10000 Ω (ohm) |
Nominal power | 0.50 W |
permissiveness | 10 ± % |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Height | 0.03 m |
Width | 0.03 m |
Length | 0.06 m |
Length | 4.70 cm |
Width | 4.90 cm |
Height | 6 cm |
Weight | 38 g |
