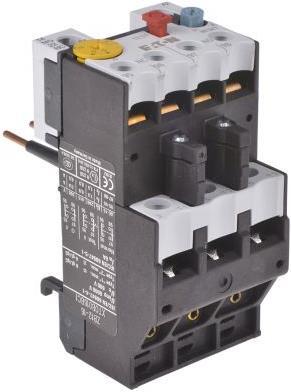

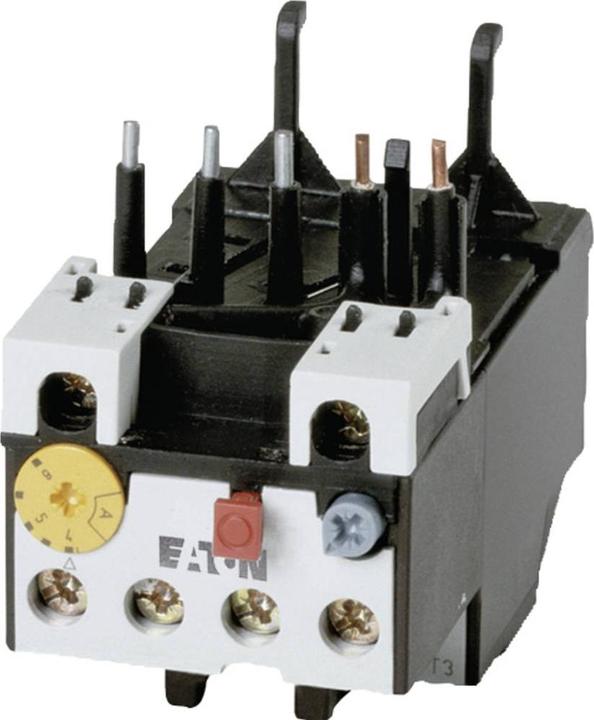

Eaton Overload relay 12-16A ZB1216

Ratings
BrandMore from Eaton
Delivered between Tue, 7.4. and Wed, 8.4.
Only 1 piece in stock at third-party supplier
Supplied by
free shipping

Product details

FLC motor power = 12 to 16 A
Control voltage = 500 Vac
Contact rated current = 16 A
Contact rated voltage = 690 Vac
Mounting type = Direct contactor
Series = ZB
Contact configuration = Normally closed/Normally open
Number of auxiliary contacts = 2
Power = 6 W
Reset type = Automatic, manual
Width = 45 mm
Operating temperature range = –5 to +55 °C

ZB12 has 5 pins, ZB32 has 4 pins. ZB overload relay protects the motor from phase faults or overload. Short circuit protection when mounted directly on contact. Suitable for protecting ATEX motors. Single-phase sensitivity according to IEC/EN 60947. When mounting the overload relay at a distance from a contactor or when using more than one overload relay, use a distance mounting base.

Key specifications

Output voltage
600 V
Electric current output
30 A

General information

Item number
9720730
Manufacturer
Eaton
Category
Relays
Manufacturer no.
ZB12-16
Release date
24.9.2018

Relay properties

Output voltage
600 V
Electric current output
30 A
Number of openers
1x
Number of closers
1x

Smart home features

Smart home
Not compatible

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
13 mm
Width
45 mm
Height
50 mm
Weight
145 g
