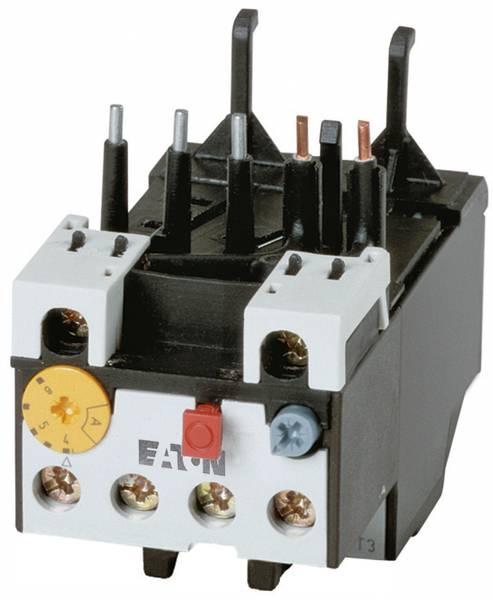

Eaton Motor protection relay

Ratings
BrandMore from Eaton
Delivered between Fri, 17.4. and Thu, 23.4.
6 pieces in stock at supplier
free shipping

Product details

The motor protection relay from Eaton is a reliable device specifically designed to protect electric motors. It provides overload protection and is intended for direct mounting on contactors. With an ampere setting that can be adjusted using a rotary knob, it allows for precise adaptation to the specific requirements of the motor. The relay is equipped with an auxiliary switch that includes both a normally closed and a normally open contact, offering additional flexibility in application. The construction meets the standards IEC/EN 60947, VDE 0660, UL, and CSA, underscoring the safety and reliability of the product. The motor protection relay is suitable for use in a temperature range of 25 to 55 °C and offers an IP20 protection rating, safeguarding it against dust and contact. It is an essential component in industrial automation, ensuring that motors can operate efficiently and safely.

  • Direct mounting on the contactor for easy installation
  • Ampere setting via rotary knob for flexible adjustment
  • Includes auxiliary switch with 1 normally closed and 1 normally open contact
  • Phase failure sensitivity according to IEC/EN 60947
  • Manual reset for additional safety.

Key specifications

Relay type
Overload relay

General information

Item number
17841935
Manufacturer
Eaton
Category
Relays
Manufacturer no.
278432
Release date
13.12.2021

Relay properties

Relay type
Overload relay
Number of openers
1x
Number of closers
1x

Smart home features

Smart home
Not compatible

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Scope of delivery
Motor protection relay 0.16-0.24A ZB12-0.24 Overload release for DILM7-15 ZB12-0.24 (278432)

Product dimensions

Length
13 mm
Width
45 mm
Height
50 mm
Weight
141 g

30-day right of return
24 Months Warranty (Bring-in)
