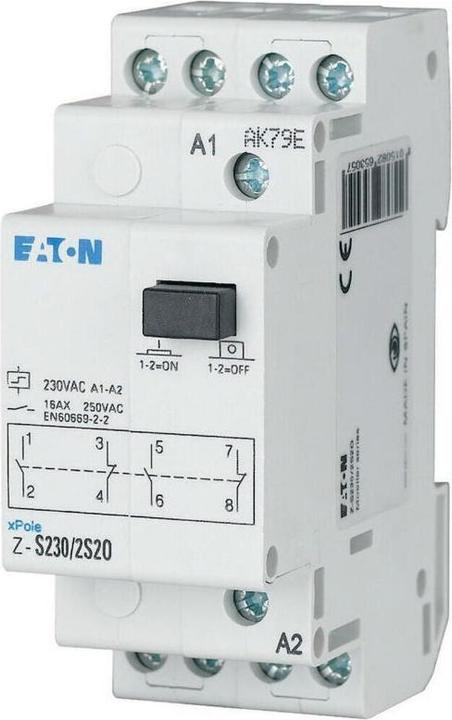

Eaton MOE Z-S230/2S2O Impulse switch, 230V 50Hz, 2S+2Ã
Product details
The MOE Z-S230/2S2O current relay from Eaton is a reliable electronic accessory designed for controlling electrical circuits. With a control voltage of 230 V and a frequency of 50 Hz, this switch provides an effective solution for various applications in electrical engineering. It features two normally closed contacts and two normally open contacts, allowing for flexible control. The switch is rated for a current of up to 16 A at 250 V AC and complies with the standards according to IEC/EN 60669-2-2. Installation is straightforward on a DIN rail, making it easy to set up in control cabinets. The terminal cross-section is suitable for solid and flexible wires ranging from 0.5 to 10 mm², offering a wide range of connection options. Thus, the MOE Z-S230/2S2O is a practical and versatile choice for professionals in the field of electrical engineering.
- Two normally closed contacts and two normally open contacts for flexible control
- Rated current of 16 A at 250 V AC
- Easy DIN rail mounting for straightforward installation
- Terminal cross-section of 0.5 to 10 mm² for versatile connection options.
Item number | 32113663 |
Manufacturer | Eaton |
Category | Electronics supplies + Casing |
Manufacturer no. | 265305 |
Release date | 16.11.2022 |
Manufacturer Type | 2S2O, Z-S230 |
Country of origin | Romania |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 0.5-6 qmm fine stranded with wire end ferrule, EN 60669-2-2: 16A, cap installation dimension 45mm, installation width 2TE (35mm), top-hat rail mounting, terminal cross-section 0.5-10 qmm solid and stranded wires, Impulse switch, 230V 50Hz, function: 2 NO and 2 NC contacts, rated current at 250V AC according to IEC |
Length | 60 mm |
Width | 2 mm |
