Product details

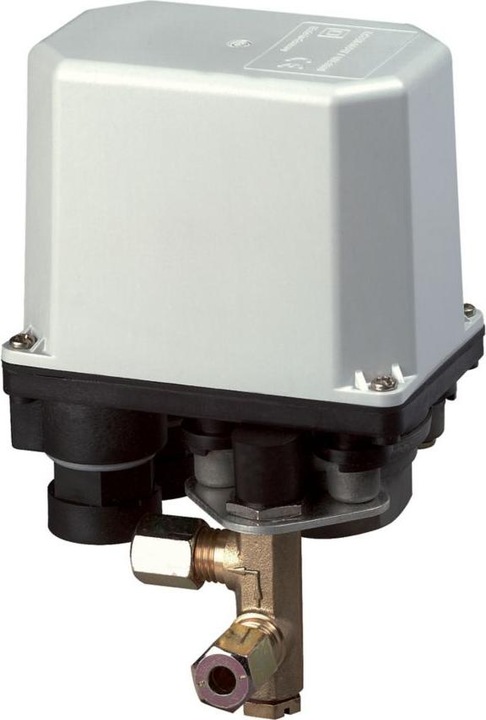

The MCSN11-V pressure switch from Eaton is a highly advanced electronic accessory designed for pressure monitoring of liquid and gaseous media, such as compressed air. This device complies with the IEC EN 60947-5-1 standard and offers an IP65 protection rating, making it ideal for use in demanding environments. The pressure switch allows for precise control of loads, with the switching pressure for both on and off being independently adjustable without steps. Equipped with a relief valve that features a hermetic screw connection for pipe diameters of 6 mm, the device ensures reliable pressure regulation. With a bursting pressure of 90 bar and a test pressure of 32 bar, the MCSN11-V is suitable for various applications, providing high safety and efficiency.
- Pressure monitoring for liquid and gaseous media
- Stepless, separate adjustment of on and off switching pressure
- Relief valve with hermetic screw connection for pipe Ø 6 mm
- Bursting pressure of 90 bar and test pressure of 32 bar
- Robust design with neoprene membranes and IP65 protection rating.
