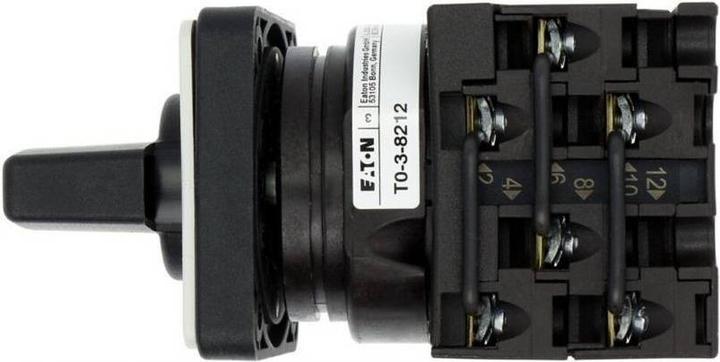

Eaton GROUP Control Switch
Delivered the day after tomorrow
Only 2 pieces in stock
Only 2 pieces in stock
Free shipping starting at 50.–
Max. Switching capacity2
Product details
Contact number and position: 3 pole normally open contact
Contact configuration: 3 NO
Electrical phases: 1, 3
Current max: 20 A
Voltage max: 690 V AC
Number of positions: 3
Connection type: screw mounting
Switching angle: 60°
Length: 48 mm
Width: 100 mm
Depth: 48 mm
Actuator type: rotary knob
Hazardous area approval: ATEX
Changeover switches. Professional flush and center mounted changeover switches from Eaton. All changeover switches are rated to IP65 and have optional 2, 4, 6, or 8 auxiliary contacts. Control switches are available with 45°, 60°, or 90° switching angles. IP65 rated with 2, 4, 6, or 8 auxiliary contacts available for center or flush mounting with 45°, 60°, or 90° switching angles.
Colour | Black, Grey |
Switch + button type | Rotary switches |
Mounting type | Built-in installation |
Width | 48 mm |
Item number | 9737981 |
Manufacturer | Eaton |
Category | Buttons + Switches |
Manufacturer no. | T0-3-8212/E |
Release date | 24.9.2018 |
Colour | Black, Grey |
Exact colour description | Black, Gray |
Material group | Plastic |
Material | Plastic |
Switch + button type | Rotary switches |
Number of actuation levels | 3x |
Mounting type | Built-in installation |
Mounting type | Screw fastening |
Number of poles | 1x |
Nominal voltage | 690 V |
Nominal current | 20 A |
Max. Switching capacity | 4000 W |
Protection type (IP code) | IP65 |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 1.63 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Length | 48 mm |
Width | 48 mm |
Height | 70 mm |
Length | 12 cm |
Width | 7.50 cm |
Height | 6.80 cm |
Weight | 170 g |
Specifications may include unverified machine translations.
30-day right of return
24 Months Warranty (Bring-in)
5 additional offers
