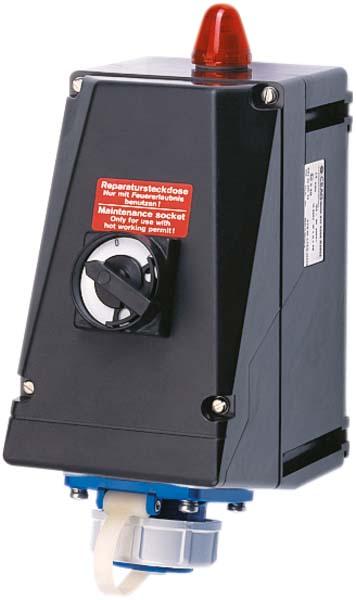

Eaton GHG 511 4306 R0902 Ex wall socket 16A2P 1/21 250V6hM25

Ceag Safety St. Ex wall socket GHG 511 4306 R0902

Manufacturer: Ceag Sicherheitst.
Designation: Ex wall-mounted socket outlet 16A 2P 1/21 250V 6h M25
Type: GHG 511 4306 R0902
Number of poles: 3
Rated current: 16 A
Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
Time position: 6 h
Identification colour: blue
Design: lower and upper part
Mounting direction: vertical
Switch: mechanical locking
Housing material: plastic
Contact material: other
Surface treatment contacts: untreated
For Ex-zone gas: 1, 2
For Ex-zone dust: 21, 22
Ex-class: IIC

Ceag Safety St. Ex wall-mounted socket outlet GHG 511 4306 R0902: further details Ex repair wall-mounted socket outlet for zone 1, 16 A, 2-pin, 200-250 V, cable entries: 1 x M25, polyamide.
