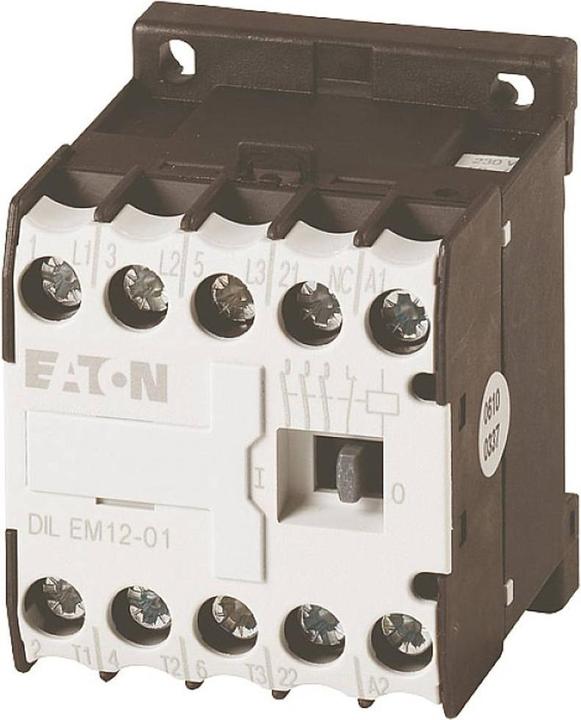

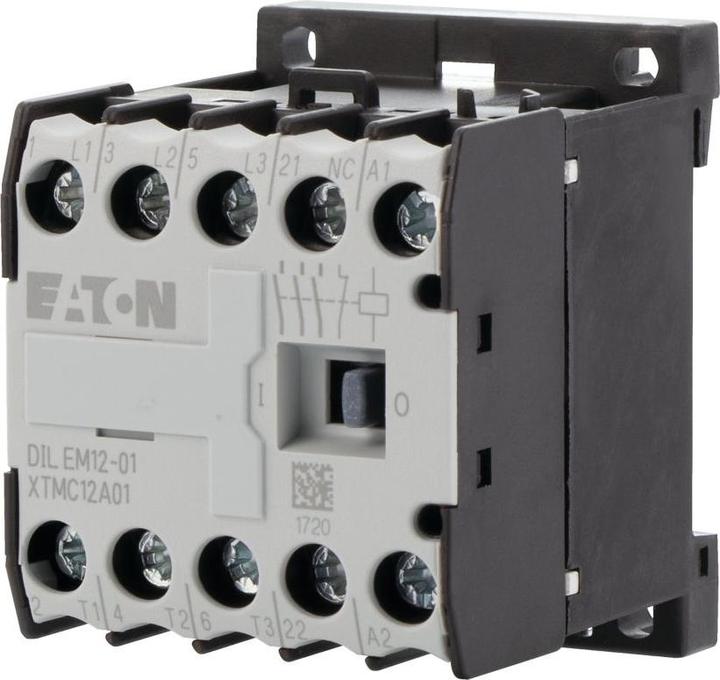

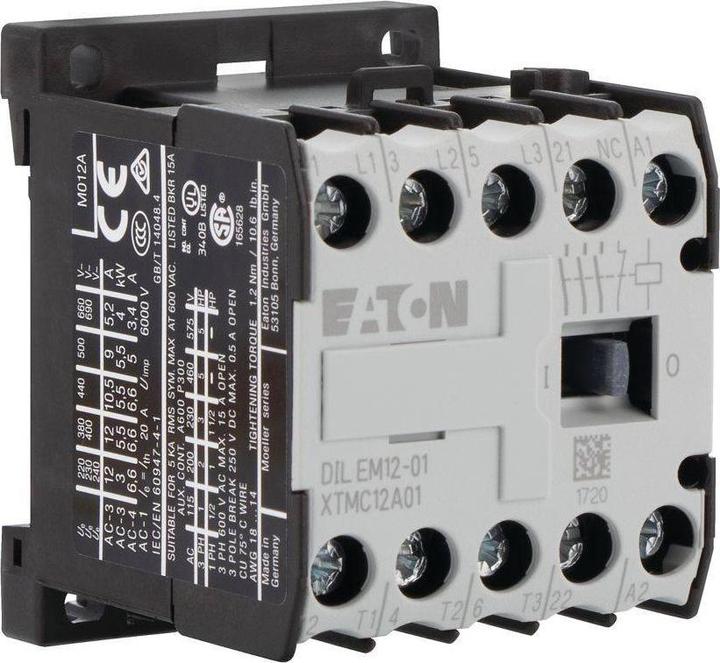

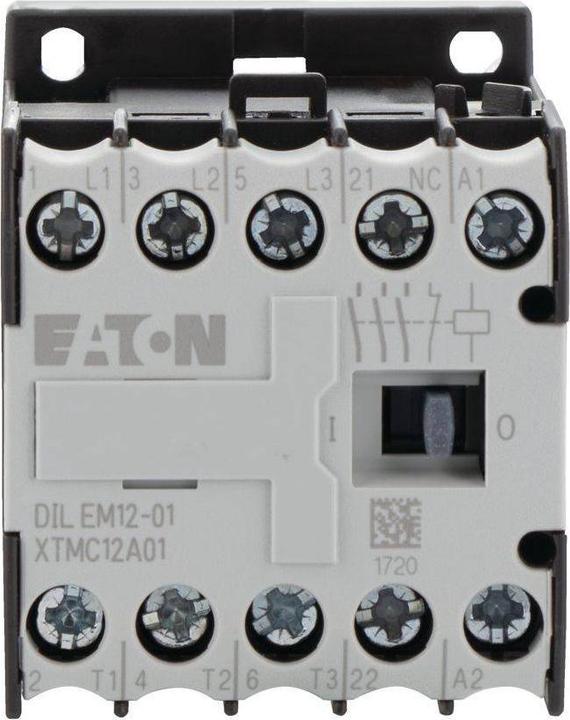

Eaton Electric GmbH Power contactor DILEM12-01-G 24VDC 5.5kW 400V

Ratings
BrandMore from Eaton
Currently out of stock
Free shipping starting at 50.–

Product details

The Eaton DILEM12-01-G power contactor is a highly developed electrical component designed for use in various applications, particularly for motor controls and resistive loads. With an input voltage of 24 VDC and a maximum operating power of 5.5 kW at 400 V, this contactor is ideal for use in industrial and commercial environments. It offers reliable switching performance and is suitable for operation with squirrel-cage motors, both for starting and stopping during operation. The robust design and the use of screw terminals for connection technology ensure easy installation and maintenance. The DILEM12-01-G is designed for use in applications of usage categories AC-1 and AC-3, providing high flexibility in application. With its compact design and integrated auxiliary contacts, this power contactor is an excellent choice for anyone seeking a reliable and efficient solution for their electrical control needs.

  • Input voltage of 24 VDC for versatile applications
  • Maximum operating power of 5.5 kW at 400 V
  • Suitable for squirrel-cage motors with AC-3 and AC-4 usage categories
  • Robust design with screw terminals for easy installation
  • Integrated auxiliary contacts for additional functionality.

Key specifications

input voltage
24 V
Scope of delivery
AC-3: Squirrel cage motors: Starting, AC-4: Squirrel cage motors: Starting, Application: Power contactor for motors, Connection technology: Screw terminals, Contactors DILEM, Counter-current brakes, Miniature contactor for motors and resistive loads, Power contactor, Resistance furnaces, Switch off during the run, Tap, Utilisation category: AC-1: Non-inductive or weakly inductive load
Output voltage
24 V
Output current type
DC
Electric current output
22000 A
Relay type
Power contactor
Item number
25191873

General information

Manufacturer
Eaton
Category
Relays
Manufacturer no.
127137
Release date
19.4.2021
External links
Manufacturer's site (de)

Relay properties

Relay type
Power contactor
input voltage
24 V
Output voltage
24 V
Electric current output
22000 A
Output current type
DC
Switching function
Normally open
Number of openers
1 x
Number of closers
3 x
Number of poles
3 x
Max. Switching capacity
5.50 kW
Manufacturer Type
DILEM12-01-G(24VDC)

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
AC-3: Squirrel cage motors: Starting, AC-4: Squirrel cage motors: Starting, Application: Power contactor for motors, Connection technology: Screw terminals, Contactors DILEM, Counter-current brakes, Miniature contactor for motors and resistive loads, Power contactor, Resistance furnaces, Switch off during the run, Tap, Utilisation category: AC-1: Non-inductive or weakly inductive load

Product dimensions

Length
63 mm
Width
60 mm
Height
50 mm
